Thomson Technology

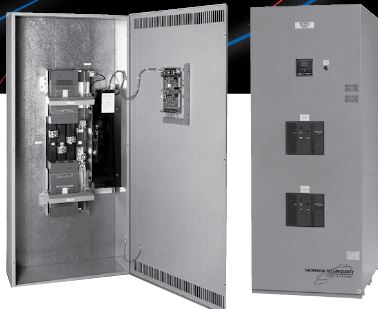

TS 88xA - 0600 1 Thomson Technology Transfer Switch (600 MAX. VOLT, 600 AMPS, T,J FUSE TYPE, TS880 Automatic Transfer Switch Series)
TS 88xA - 0600 1 Thomson Technology Transfer Switch (600 MAX. VOLT, 600 AMPS, T,J FUSE TYPE, TS880 Automatic Transfer Switch Series)
SKU:TS 88xA - 0600 1
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Thomson Technology TS 88xA - 0600 1, TS880 Automatic Transfer Switch Series, 600 MAXIMUM VOLTAGE, 600 RATED CURRENT (AMPS), T,J FUSE TYPE
| Applications |
| Thomson Technology TS 880 Standard Automatic Transfer Switches employ two mechanically interlocked power switching units with a microprocessor based controller to automatically start a generator and transfer system load to a generator supply in the event of a utility supply failure. System load is then automatically retransferred back to the utility supply following restoration of the utility power source to within normal operating limits. All load transfer sequences are Open Transition (i.e. break-before-make) with adjustable neutral position delay unless the Closed Transition option is supplied with the transfer switch. |
| Features |
| Programmable/Multi-Tap System Voltage Selection |
| Load on Utility & Load on Generator Lights c/w Lamp Test |
| 3 Phase Voltage Sensing on Utility & Generator Sources |
| Under/Over Frequency Sensor on Generator Source (with Adjustable Time Delay) |
| Under/Over Frequency Sensor on Utility Source (with Adjustable Time Delay) |
| Over Voltage 3 Phase Sensor on both Utility and Generator Sources |
| TSC 800 Remote Communication Port (RS422). Can be used in Conjunction with External Communication Interface Module (CIM Module Not Included). |
| Digital 3 Phase Metering of Voltage & Frequency on Utility & Generator Sources |
| Phase Balance (Utility & Generator Source) |
| Engine Start Delay Timer |
| Engine Cooldown Delay Timer |
Specifications | |
Brand |
Thomson Technology |
Catalog Number |
TS 88xA - 0600 1 |
Type |
Transfer Switch |
Series |
TS880 Automatic Transfer Switch |
MAXIMUM VOLTAGE |
600 |
RATED CURRENT (AMPS) |
600 |
FUSE TYPE |
T,J |
DIMENSIONS (Inches) HEIGHT |
70 |
DIMENSIONS (Inches) WIDTH |
34 |
DIMENSIONS (Inches) DEPTH |
13 |
DIMENSIONS (Inches) DEPTH (Drawout Option) |
N/A |
TERMINAL RATING QTY PER PHASE |
2 |
TERMINAL RATING RANGE |
2/0 - 500 MCM |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
