Thomson Technology

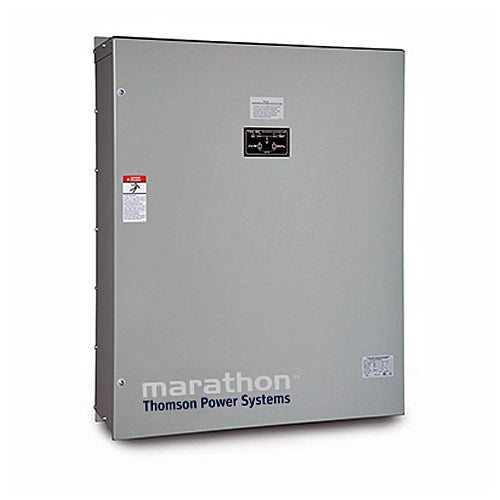

TS 84xA - 0600 Thomson Technology Transfer Switch (240 MAX. VOLT, 600 AMPS, T,J RMS Fuse Type, TS840 Automatic Transfer Switch Series)
TS 84xA - 0600 Thomson Technology Transfer Switch (240 MAX. VOLT, 600 AMPS, T,J RMS Fuse Type, TS840 Automatic Transfer Switch Series)
No reviews
SKU:TS 84xA - 0600
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Thomson Technology TS 84xA - 0600, TS840 Automatic Transfer Switch Series, 240 MAXIMUM VOLTAGE, 600 RATED CURRENT (AMPS), T,J WITHSTAND CURRENT RATING AMPS (RMS) With Upstream Fuse Protection FUSE TYPE, 2,3 NUMBER OF POLES
| Applications |
| Thomson Technology TS 840 series of Automatic Transfer Switches employ two mechanically interlocked enclosed contact power switching units and a microprocessor based controller to automatically transfer system load to a generator supply in the event of a utility supply failure. System load is automatically re-transferred back to the utility supply following restoration of the utility power source to within normal operating limits. |
| Features |
| Load on Utility & Load on Generator Lights |
| Utility & Generator Source Available Lights |
| Three Phase Voltage Sensing on Utility & Generator Sources |
| Under Frequency Sensor on Generator Source |
| Engine Start Delay Timer 0-60 sec. |
| Engine Cooldown Delay Timer 0-30 min. |
| Engine Warm-up Timer 0-60 sec. |
| Neutral Position Delay 0-60 sec. |
| Utility Return Timer 0-30 min. |
| Engine Start Contact (10A, 120/240VAC res. Form B) |
| Exercise Timer (On or Off Load, Fixed 30 min.) |
Specifications | |
Brand |
Thomson Technology |
Catalog Number |
TS 84xA - 0600 |
Type |
Transfer Switch |
Series |
TS840 Automatic Transfer Switch |
MAXIMUM VOLTAGE |
240 |
RATED CURRENT (AMPS) |
600 |
Withstand current rating amps w/ Upstream Circuit Breaker Protection |
65000 @ 240V |
Withstand current rating amps w/ Upstream Fuse Protection |
100000 @ 240V |
Withstand current rating amps w/ Upstream Fuse Protection FUSE TYPE |
T,J |
MODEL AMPERAGE |
600A |
NUMBER OF POLES |
2,3 |
DIMENSIONS Inches (mm) HEIGHT |
46.1 (1171) |
DIMENSIONS Inches (mm) WIDTH |
36.3 (922) |
DIMENSIONS Inches (mm) DEPTH |
14.5 (368) |
TERMINAL RATING QTY PER PHASE |
2 |
TERMINAL RATING RANGE |
2/0 - 500 MCM |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
