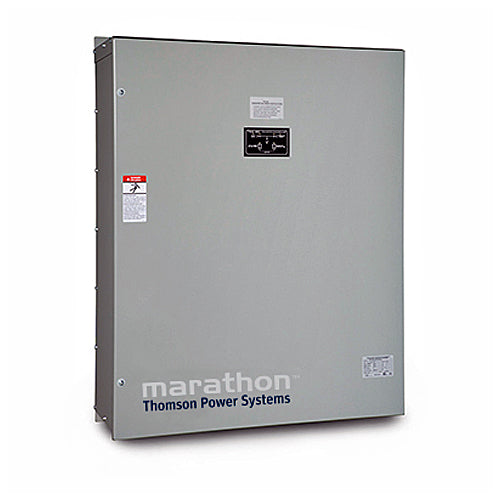

TS 84xA - 0400 Thomson Technology Transfer Switch (240 MAX. VOLT, 400 AMPS, T,J RMS Fuse Type, TS840 Automatic Transfer Switch Series)

TS 84xA - 0400 Thomson Technology Transfer Switch (240 MAX. VOLT, 400 AMPS, T,J RMS Fuse Type, TS840 Automatic Transfer Switch Series)

👁️ [COUNT] People are currently viewing this product.

TS 84xA - 0400

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Thomson Technology TS 84xA - 0400, TS840 Automatic Transfer Switch Series, 240 MAXIMUM VOLTAGE, 400 RATED CURRENT (AMPS), T,J WITHSTAND CURRENT RATING AMPS (RMS) With Upstream Fuse Protection FUSE TYPE, 2,3 NUMBER OF POLES
Applications
Thomson Technology TS 840 series of Automatic Transfer Switches employ two mechanically interlocked enclosed contact power switching units and a microprocessor based controller to automatically transfer system load to a generator supply in the event of a utility supply failure. System load is automatically re-transferred back to the utility supply following restoration of the utility power source to within normal operating limits.
Features
Load on Utility & Load on Generator Lights
Utility & Generator Source Available Lights
Three Phase Voltage Sensing on Utility & Generator Sources
Under Frequency Sensor on Generator Source
Engine Start Delay Timer 0-60 sec.
Engine Cooldown Delay Timer 0-30 min.
Engine Warm-up Timer 0-60 sec.
Neutral Position Delay 0-60 sec.
Utility Return Timer 0-30 min.
Engine Start Contact (10A, 120/240VAC res. Form B)
Exercise Timer (On or Off Load, Fixed 30 min.)

Specifications

Brand
Thomson Technology
Catalog Number
TS 84xA - 0400
Type
Transfer Switch
Series
TS840
MAXIMUM VOLTAGE
240
RATED CURRENT (AMPS)
400
Withstand current rating amps w/ With Upstream Circuit Breaker Protection
65000 @ 240V
Withstand current rating amps w/ With Upstream Fuse Protection
100000 @ 240V
Withstand current rating amps w/ With Upstream Fuse Protection FUSE TYPE
T,J
MODEL AMPERAGE
400A
NUMBER OF POLES
2,3
DIMENSIONS Inches (mm) HEIGHT
43.1 (1095)
DIMENSIONS Inches (mm) WIDTH
34.3 (871)
DIMENSIONS Inches (mm) DEPTH
13.0 (330)
TERMINAL RATING QTY PER PHASE
2
TERMINAL RATING RANGE
2/0 - 500 MCM
Warranty
1 Year
Notes
See Support Documents
