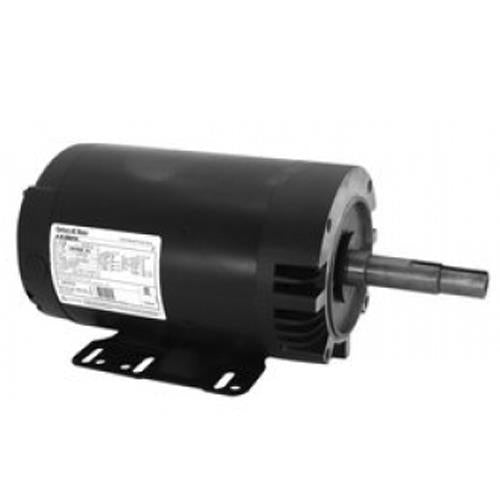

TCP72005 Century Industrial Close-Coupled Pump Motor (5 HP, 184JP Frame)
TCP72005 Century Industrial Close-Coupled Pump Motor (5 HP, 184JP Frame)
[COUNT] shoppers are looking at this right now
No reviews
SKU:TCP72005
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Century Motor TCP72005, HP: 5, RPM: 3600, Volts: 200-230/460, Frame: 184JP, Ref #:
Specifications: |
|
| Model Number | TCP72005 |
| Cross Reference Number | |
| HP | 5 |
| RPM | 3600 |
| Volts | 200-230/460 |
| Max Amps | 13.9-11.8/5.9 |
| Service Factor | 1.15 |
| Frame | 184JP |
| Efficiency | 87.5 |
| Shaft | |
| Motor Type | |
| Bearings | Ball Bearings |
| Enclosure | TEFC |
| Base | Rigid Base |
| "C" Dim. | 20.9 |
| Phase | 3 |
| Overload Protector | |
| Insulation Class | F |
| Cast Iron | YES |
| Notes | Oversized, Locked Shaft End Bearing |
