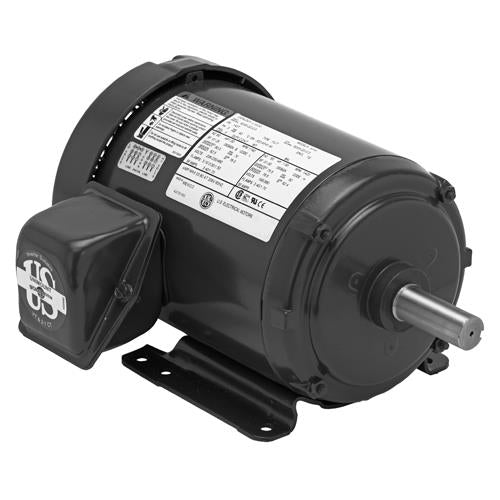

T34S1A U.S. Motors General Purpose Motor (3/4 HP, 56 Frame, Three Phase, 3600 RPM)

T34S1A U.S. Motors General Purpose Motor (3/4 HP, 56 Frame, Three Phase, 3600 RPM)

[COUNT] shoppers are looking at this right now

T34S1A

$250.47 USD
$0.00 USD $250.47 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson T34S1A, HP: 3/4, RPM: 3600, Volts: 208-230/460, "C" Dim: 11.9, Frame: 56, Phase: Three, Motor Mount: Foot Mounted, Enclosure: TEFC, Fans, Compressors, Pumps

Applications
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.
Features
Class F Insulation, Class B Rise at Full Load On 60 Hertz Sine Wave Power, Aluminum Frame (180-280), Rolled Steel (56-140), "CE" Mark on Nameplate (140 Frame & Larger), Shaft Slinger on Pulley End, Full 50 & 60 Hertz Operating Data on Nameplate (03), Full HP @ 50 Hz, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, Regreasable Shaft-End Bearings 180 Frame & Up, Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable for Part Winding Start (PWS) on Low Voltage, Lifting Provisions 180 Frame & Up, Conversion Kits: Drip Cover & Brakes (56-210 Frame), See Pages 263-266

Tech Specs.

Brand
U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor
Model Number
T34S1A
HP
3/4
RPM
3600
Volts
208-230/460
"C" Dim
11.9
Frame
56
Full Load Amps
2.5-2.5/1.2
Full Load Efficiency
-
Apx. Wt. (lb)
22
SF
1.15
Phase
Three
Motor Mount
Foot Mounted
Enclosure
TEFC
Type
General Purpose Industrial Motor
