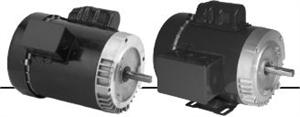

T1CM2J14CR U.S. Motors General Purpose Motor (1 HP, 143TC Frame, 1800 RPM)

T1CM2J14CR U.S. Motors General Purpose Motor (1 HP, 143TC Frame, 1800 RPM)

[COUNT] shoppers are looking at this right now

T1CM2J14CR

$753.78 USD
$0.00 USD $753.78 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson T1CM2J14CR, HP: 1, RPM: 1800, Volts: 115/208-230, Frame: 143TC, "C" Dim. : 12.4, Speed: Single , Motor Mount : Footless, Enclosure: TEFC, Notes: Capacitor Start , Blowers, pumps

Applications
For use on air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment.
Features
Double Shielded Ball Bearings; Class B Insulation; Continuous Duty; 40C Ambient; Capacitor Start; Induction Run; F1 Assembly; Reversible Rotation; 50/60 Hz Motors Have 1.0 S.F. on 50 Hz

Tech Specs.

Brand
U.S. Motors/Emerson General Purpose Single Phase C-Face Motor
Model Number
T1CM2J14CR
HP
1
RPM
1800
Volts
115/208-230
SF
1.15
Frame
143TC
Full Load Amps
14.0/6.9-7.0
"C" Dim.
12.4
Apx. Wt. (lb)
30
Speed
Single
Phase
Single
Motor Mount
Footless
Enclosure
TEFC
Type
General Purpose Single Phase C-Face Motor
Rotation
Reversible
Notes
Capacitor Start
