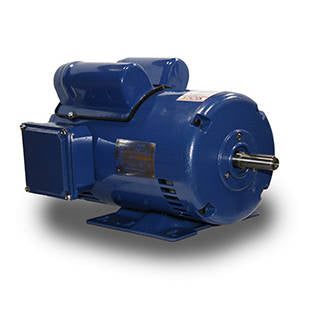

SPH0024 TECO Westinghouse HVAC Motors (2 HP, 1 Phase, 1800 RPM, 56/56H Frame, ODP, NEMA Premium)
SPH0024 TECO Westinghouse HVAC Motors (2 HP, 1 Phase, 1800 RPM, 56/56H Frame, ODP, NEMA Premium)
SKU:SPH0024
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
SPH0024 TECO Westinghouse (2 HP, 1 Phase, 1800 RPM, 56/56H Frame, ODP, NEMA Premium))
APPLICATIONS:
Fans
Air Conditioning Blowers
Pumps
Heating
Compressors
Ventilation
FEATURES:
Capacitor Start, Capacitor Run
Class F Insulation
Automatic Reset Overload
Class B Temperature Rise
Designed for 40˚C Ambient Temperature(1)
Designed for 3300 ft. Elevation(2)
Bi-Directional Rotation
Rolled Steel Frame
Cast Aluminum Terminal Box
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
Paint Color: Blue - Munsell 5 PB 3/8
Double Shielded Bearings Pre-Packed with Lithium Base Grease
No Terminals; Lead ends pre-scored for easy insulation removal
Grounding Terminal Inside Main Box
Stainless Steel Nameplate
Motors are UL Recognized for United States and Canada
