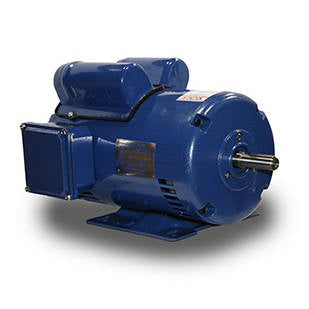

SPH0/24 TECO Westinghouse HVAC Motors (1/4 HP, 1 Phase, 1800 RPM, 56 Frame, ODP, NEMA Premium)

Name: SPH0/24 TECO Westinghouse HVAC Motors (1/4 HP, 1 Phase, 1800 RPM, 56 Frame, ODP, NEMA Premium)
Brand: Teco
SKU: SPH0/24
Price: 213.34 USD
Availability: InStock

SKU:SPH0/24

$213.34 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

SPH0/24 TECO Westinghouse (1/4 HP, 1 Phase, 1800 RPM, 56 Frame, ODP, NEMA Premium))

APPLICATIONS:
Fans
Air Conditioning Blowers
Pumps
Heating
Compressors
Ventilation

FEATURES:

Capacitor Start, Capacitor Run
Class F Insulation
Automatic Reset Overload
Class B Temperature Rise
Designed for 40˚C Ambient Temperature(1)
Designed for 3300 ft. Elevation(2)
Bi-Directional Rotation
Rolled Steel Frame
Cast Aluminum Terminal Box
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
Paint Color: Blue - Munsell 5 PB 3/8
Double Shielded Bearings Pre-Packed with Lithium Base Grease
No Terminals; Lead ends pre-scored for easy insulation removal
Grounding Terminal Inside Main Box
Stainless Steel Nameplate
Motors are UL Recognized for United States and Canada

Questions about this product? Contact our team!
Product images may be generic.

View full details
