Sta-Rite Pumps

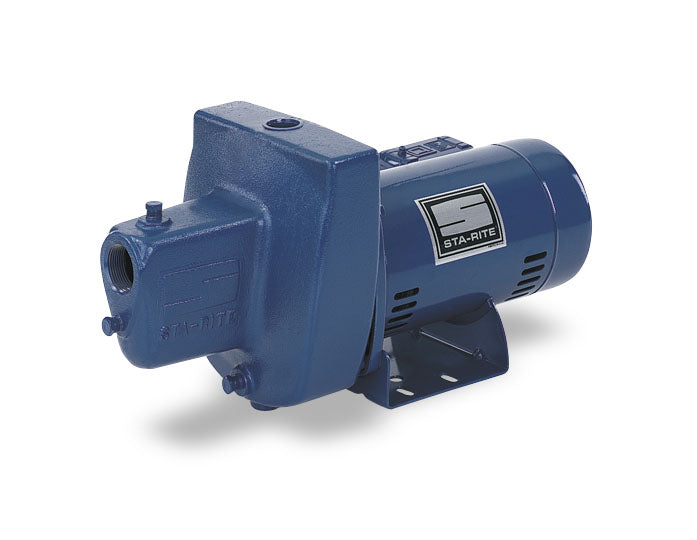

SNF-L STA-RITE Shallow Well Jet Pump (1-1/2 HP, 115/230V, 1 Phase, 25' Max. Lift, 24.4 GPM @ 10 FT/40 PSI)
SNF-L STA-RITE Shallow Well Jet Pump (1-1/2 HP, 115/230V, 1 Phase, 25' Max. Lift, 24.4 GPM @ 10 FT/40 PSI)
SKU:SNF-L
Regular price
$861.82 USD
Regular price
$1,769.00 USD
Sale price
$861.82 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
SNF, 1-1/2 HP, 115/230 Volts, 1 Phase, 30-50 PSI Pressure Switch Setting, 1-1/4" NPT Suction Size, 1" NPT Discharge Size, 25' Max. Lift, 24.4 GPM @ 10 FT/40 PSI,
| Applications | |
| Water Systems and Irrigation for Homes, Farms and Cottages | |
| Features | |
| The ProJet HN models provide excellent performance with good pressure for wells to 25' deep | |
| Close-grained cast iron body, specially treated for corrosion resistance | |
| Drain port provided for easy winterizing | |
| Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser | |
| Stainless steel shaft for maximum corrosion resistance | |
| High strength Lexan nozzle and venturi for maximum resistance to corrosion and abrasion | |
| Self-priming after the priming chamber has been filled with water | |
Specifications | |
Brand |
STA-RITE |
Model Number |
SNF-L |
Type |
Self-Priming Shallow Well Jet Pump |
STA-RITE Pump Series |
ProJet SN Series - Cast Iron |
HP |
1-1/2 |
Volts |
115/230 |
Phase |
1 |
Pressure Switch Setting |
30-50 PSI |
Suction Size |
1-1/4" NPT |
Discharge Size |
1" NPT |
Max. Lift |
25' |
Max. Temperature |
140F |
Max. Inlet Pressure |
50 PSI |
Shut-off Pressure |
67 PSI |
GPM @ 10 FT/40 PSI |
24.4 |
Max. GPM |
28.5 |
Pump Body |
Close-Grained Cast Iron |
Shaft |
416 Stainless Steel |
Impeller |
Noryl |
Nozzle & Venturi |
Lexan |
Diffuser |
Reinforced Polypropylene |
Pressure Switch |
Included |
Warranty |
1 Year |
Weight lbs. |
60 |
Notes & Pump Curve |
See Support Documents |
Pump Manual |
See Support Documents |
Support Documents (pdf) | ||||
| Notes & Pump Curve | ||||
| Installation & Parts Manual | ||||
