S40HT-11P Pentair Myers High-Temperature Cast Iron Effluent Pumps (1/3 HP, 45 Max Capacity, 1-1/2" Discharge, 3/4" Solids, 115V, 1 Phase, 20' Cord, Tethered Switch)

S40HT-11P Pentair Myers High-Temperature Cast Iron Effluent Pumps (1/3 HP, 45 Max Capacity, 1-1/2" Discharge, 3/4" Solids, 115V, 1 Phase, 20' Cord, Tethered Switch)

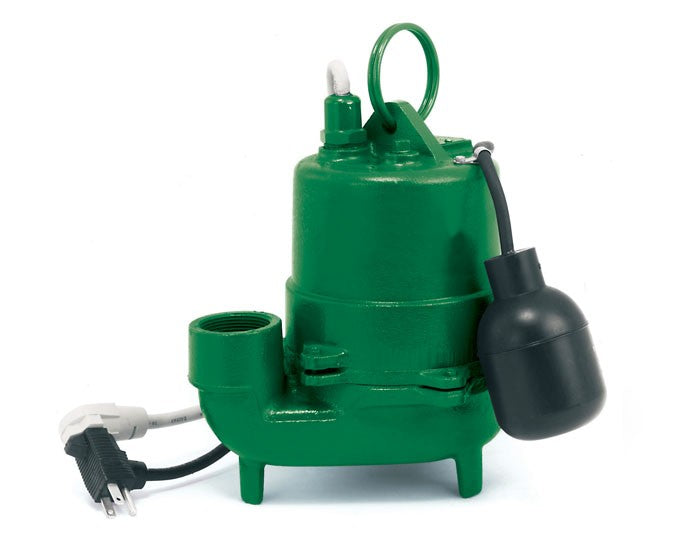

The Myers S40HT series effluent pump is a small, rugged, submersible, cast iron pump with a non-clog vortex impeller and solids handling capability to 3/4".

Applications: Boiler blowdown pits, condensate pits, hot water sumps

Features:

- All cast iron housing, volute case, and impeller resists the most extreme corrosive environments
- Rugged-built, oil-filled motor for continuous bearing lubrication and maximum heat dissipation
- Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature
- Lower ball bearing eliminates sleeve bearing wear and reduces motor wear
- Non-clog vortex style, ejector vanes for seal protection
- Allows easy disassembly after extended service
- Prevents oil loss from - and moisture protection for - motor
- Permanently lubricated for long life
- Heavy-duty lift-out ring

Specifications:

Capacities – 45 GPM (170 LPM
Shut-off Head – 21’ (6.4 m)
Operation – S40HT-11P
On: 13.5” (343 mm); Off: 4.5” (114 mm)
Operation – Manual and automatic
Solids Handling – 3/4” (19 mm)
Liquids Handling – High temperature liquids Intermittent Liquid Temperature –
S40HT-11P: up to 194°F (90°C)
S40HT-11: up to 200°F (93°C)
Motor/Electrical Data – 1/3 HP, 12.0A,  thermal overload protection, oil-filled,  115V, 1Ø, 60Hz, 1550 RPM
Acceptable pH Range – 6-9
Mechanical Seal – Type 6A or equal,  Buna-N elastomers, carbon and ceramic sealing faces, stainless steel metal parts
Bearings – Lower ball, upper sleeve type,  oil lubricated
Housing/Volute Case/Impeller – Cast iron
Exterior Hardware – Stainless steel
Power Cord – 20’, 16/3, SJOOW-A/SJOW with integrally grounded three-prong plug
Discharge, NPT – 1-1/2” (38.1 mm) Minimum Sump Diameter – Simplex: 18”
(45.7 cm); Duplex: 30” (76.2 cm)
