Berkeley Pumps

S40097 Berkeley Self-Priming Centrifugal Pumps (5 HP, 1 Phase, 230 Voltage, 2-1/2" Suction, 2" Discharge, 22 Max Load Amps, High Head, LTM/LTH Series)

Name: S40097 Berkeley Self-Priming Centrifugal Pumps (5 HP, 1 Phase, 230 Voltage, 2-1/2" Suction, 2" Discharge, 22 Max Load Amps, High Head, LTM/LTH Series)
Brand: Berkeley Pumps
SKU: S40097
Price: 2634.67 USD
Availability: InStock

SKU:S40097

Sale Sold out

Shipping calculated at checkout.

1 total reviews

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

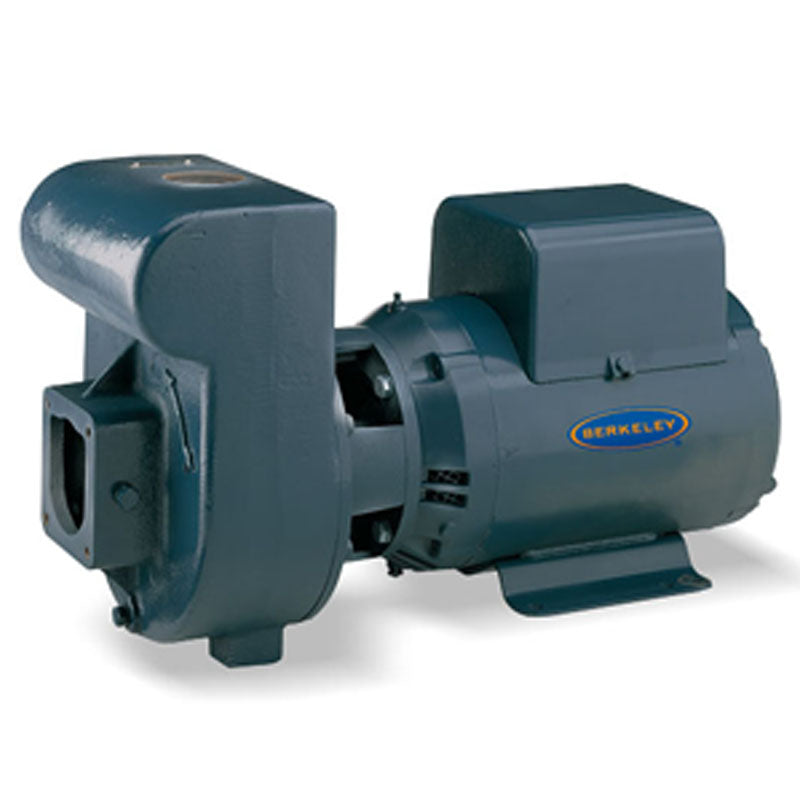

Berkeley S40097, Self-Priming, Cast Iron Centrifugal Pumps Type, LTM/LTH Series, 5 HP, 1 Phase, 230 Voltage, 2" Discharge, High Head

Applications
Lawn Sprinkling operate from 1 to 30 or more heads. Can be safely operated by timer or other automatic device. Contractors for dewatering excavation, jetting, water transfer and supply operations. Agriculture seed bed and plot irrigation, stock watering, fire protection. Industrial sump drainage, fire protection, marine pumping, liquid transfer and supply operations.

Features
Heavy-Duty Motors - on Both High and Medium Head Models
Drain Port - Provided For Easy Servicing
Medium Head Models - Deliver Up To 115' of Head With Capacities to 159 GPM
High Head Models - Deliver Up To 138' of Head With Capacities to 162 GPM
Easy Serviceability - Normal Wearing Parts Easily Replaced Without Disturbing Piping or Mounting

Specifications
Brand	Berkeley
Catalog Number	S40097
Type	Self-Priming, Cast Iron Centrifugal Pumps
Series	LTM/LTH
HP	5
Phase	1
Voltage	230
Suction	2-1/2"
Discharge	2"
Max Load Amps	22
Description	High Head
Body and Base	Close-grained cast iron
Impeller	Bronze
Diffuser	Cast iron
Shaft	Carbon steel inside removable shaft sleeve of stainless steel.
Max Inlet Pressure	20 PSI
Max Discharge Pressure	100 PSI
Capacities	162 GPM

Support Documents (pdf)

Notes

Manual

Questions about this product? Contact our team!
ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
