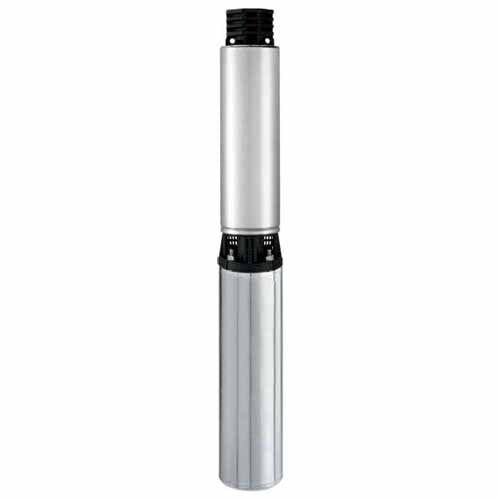

S15P4JP05121-02 Pentair Sta-Rite 4" Corrosion Resistant Signature 2000 Submersible Well Pump and Motor Package (JP Series, 1/2 HP, 15 GPM, 2 Wire, 1 Phase, 115 Volt, 6 Stages, 1-1/4" NPT Discharge)
S15P4JP05121-02 Pentair Sta-Rite 4" Corrosion Resistant Signature 2000 Submersible Well Pump and Motor Package (JP Series, 1/2 HP, 15 GPM, 2 Wire, 1 Phase, 115 Volt, 6 Stages, 1-1/4" NPT Discharge)
[COUNT] shoppers are looking at this right now
No reviews
SKU:S15P4JP05121-02
Regular price
$671.83 USD
Regular price
$1,799.00 USD
Sale price
$671.83 USD
Shipping calculated at checkout.
Quantity
View price in cart
Couldn't load pickup availability
Sta-Rite Pumps S15P4JP05121, 4" Submersible Well Pump and Motor Type, 1/2 HP, 15 GPM, 2 Wire Motor Type,
| Applications | |
| Water systemsfor residential, industrial, commercial, multiple housing and farm use. | |
| Features | |
| Discharge: Corrosion-resistant fiberglassreinforced thermoplastic for durability in aggressive water. Large octagon wrench area for ease of installation. | |
| Proven Staging System: Our proven SignaSeal staging system incorporates a harder-than-sand ceramic wear surface that when incorporated with our floating impeller design, greatly reduces problems with abrasives, sand lock-up and running dry. | |
| Discharge Bearing: Exclusive self-lubricating Nylatron bearing resists wear from sand. | |
| Intake: Corrosion-resistant fiberglassreinforced thermoplastic for durability in aggressive water. | |
| Shaft: Positive drive from 7/16" hexagonal heavy-duty 300 grade stainless steel. | |
| Coupling: Stainless steel press fit to pump shaft. Couples to all standard NEMA motors. | |
| Shell: Crimped shell. | |
| Hardware: All screws, washers and nuts are corrosion-resistant 300 grade stainless steel. | |
| Check Valve: Spring-loaded check valve. | |
| Cable Guard: Corrosion-resistant stainless steel guard protects motor leads. Tapered ends prevent pump from catching on well. | |
| Intake Screen: Molded-in screen. | |
Specifications | |
Brand |
Sta-Rite Pumps |
Catalog Number |
S15P4JP05121 |
Type |
4" Submersible Well Pump and Motor |
Series |
JP |
HP |
1/2 |
GPM |
15 |
Motor Type |
2 Wire |
Stages |
6 |
Phase |
1 |
Voltage |
115 |
Length (Inches) |
23 |
Weight (lbs) |
27 |
Pump End Model |
L15P4CJ |
Motor End Model |
P42B0005A1 |
Discharge Size |
1-1/4" NPT |
Shell |
Stainless steel |
Diameter |
3-7/8" |
Discharge |
Fiberglass-reinforced thermoplastic |
Discharge Bearing |
Nylatron |
Impellers |
Acetal |
Diffusers |
Polycarbonate |
Notes |
See support documents |
