U.S. Motors

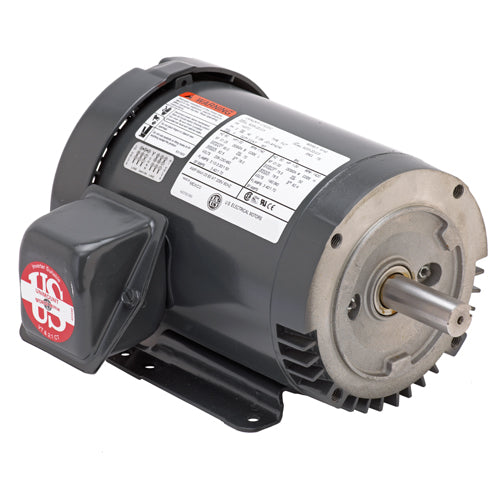

S10P2AC U.S. Motors General Purpose Motor (10 HP, 215TC Frame, Three Phase, 1800 RPM)

S10P2AC U.S. Motors General Purpose Motor (10 HP, 215TC Frame, Three Phase, 1800 RPM)

S10P2AC

$1,038.01 USD
$1,038.01 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson S10P2AC, HP: 10, RPM: 1800, Volts: 208-230/460, "C" Dim: 19.4, Frame: 215TC, Phase: Three, Motor Mount: Foot Mounted, Enclosure: TEFC, Fans, Compressors, Pumps

Applications
For use on pumps, fans, compressors, material handling and other general purpose applications in damp, dusty or dirty environments.
Features
Class F Insulation, Class B Rise at Full Load On 60 Hertz Sine Wave Power, Aluminum Frame (180-280), Rolled Steel (56-210), "CE" Mark on Nameplate (140 Frame & Larger), Shaft Slinger on Pulley End, Full 50 & 60 Hertz Operating Data on Nameplate (03), Full HP @ 50 Hz, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, Regreasable Shaft-End Bearings 180 Frame & Up, Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable for Part Winding Start (PWS) on Low Voltage, Lifting Provisions 180 Frame & Up

Tech Specs.

Brand
U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor
Model Number
S10P2AC
HP
10
RPM
1800
Volts
208-230/460
"C" Dim
19.4
Frame
215TC
Full Load Amps
26.5-23.9/11.9
Full Load Efficiency
91.7
Apx. Wt. (lb)
120
SF
1.15
Phase
Three
Motor Mount
Foot Mounted
Enclosure
TEFC
Type
General Purpose Industrial Motor
