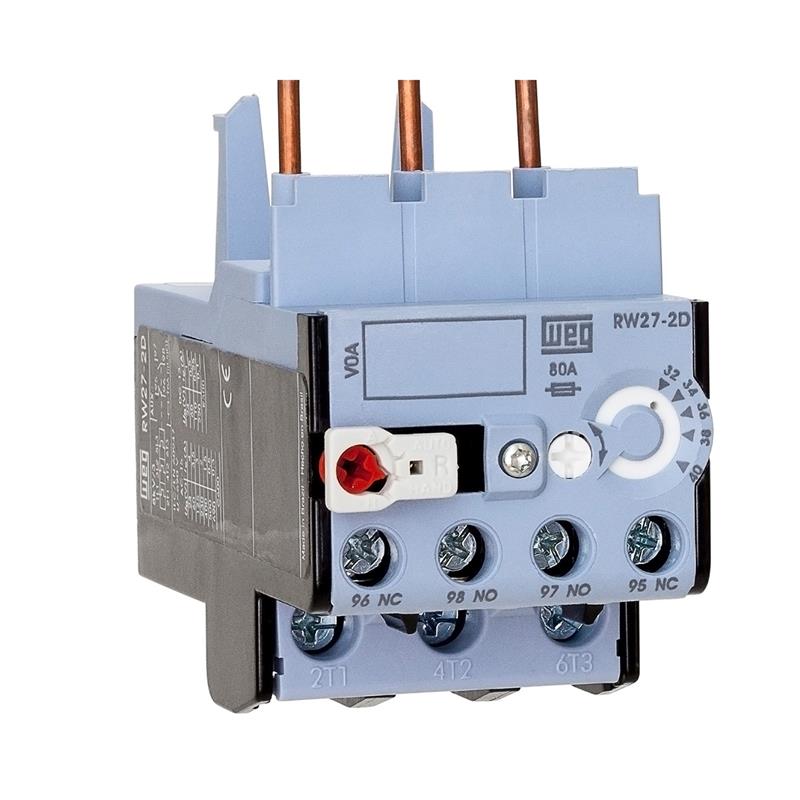

RW27-2D3-U010 WEG Overload Relay BU
RW27-2D3-U010 WEG Overload Relay BU
SKU:RW27-2D3-U010
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Couldn't load pickup availability
RW27-2D3-U010 WEG Overload Relay BU
Reference RW27
Number of poles 3 poles
Mounting type Direct
Contactor model CWB9-38
Mounting configuration 2D
Rated insulation voltage Ui 690 V
Rated insulation voltage Ui (acc. to UL) 600 V
Rated impulse withstand voltage Uimp 6 kV
Rated operational frequency 25...400Hz
Suitable for use with DC loads Yes
Maximum operating frequency 15 ops./h
Degree of protection - main terminals IP10
Degree of protection - auxiliary terminals IP20
Current range 7-10 A
Max. Fuse (type 2 coordination) 25gL/gG
Short circuit protection with fuses (gL/gG) 6gL/gG
Height 72 mm / 2.83 in
Width 45 mm / 1.77 in
Depth 82 mm / 3.23 in
Gross weight 0,165 k
