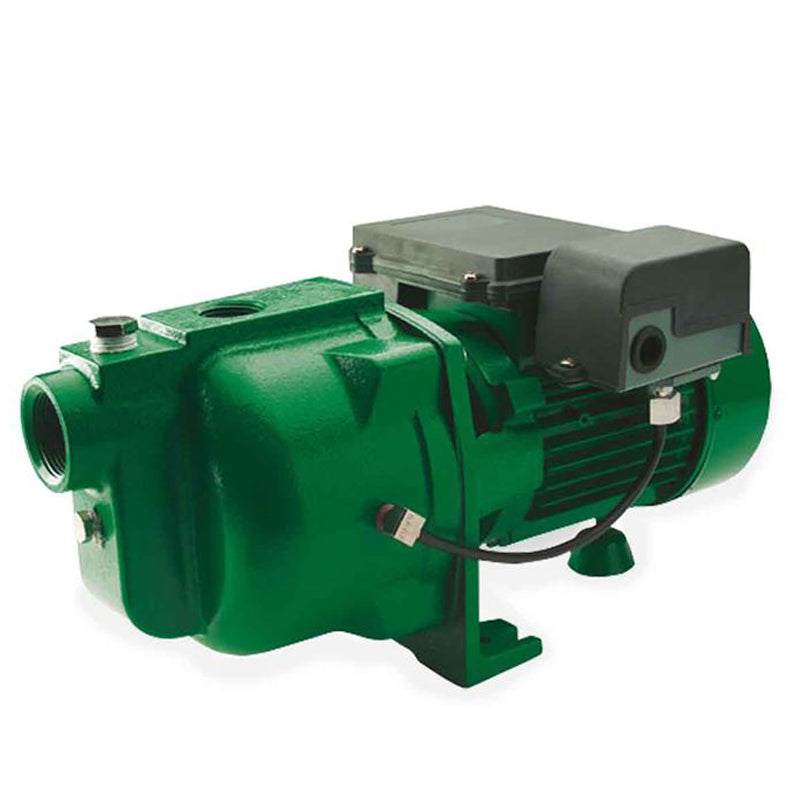

QD50S Myers Shallow Well Jet Pump (1/2 HP, 27 Max GPM, 1-1/4" NPT Suction, 115/230 Voltage, Cast Iron Body, Quick Draw Series)

QD50S Myers Shallow Well Jet Pump (1/2 HP, 27 Max GPM, 1-1/4" NPT Suction, 115/230 Voltage, Cast Iron Body, Quick Draw Series)

👁️ [COUNT] People are currently viewing this product.

QD50S

$692.73 USD
$1,352.00 USD $692.73 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Myers QD50S, Shallow Well Jet Pump Type, Quick Draw Series, 1/2 HP, 27 Max GPM, 1-1/4" NPT Suction, 115/230 Voltage, Cast Iron Body,
Applications
home, farm, commercial and industrial
Features
Large capacity top suction case, internal priming plate, and separate priming plug on case add up to Quick and Easy Priming
Dual voltage motor with protection from moisture, insect, or dirt damage to electrical components for maximum life
Maximum pressures to 70 psi; flow capabilities to 23 GPM.
Convenient back pullout design along with nozzle clean-out mean easy serviceability
Precision lapped and polished carbon/ceramic shaft seal with buna and stainless steel components
Direct mount pressure switch is factory preset to 30-50 psi
Flow at 10' LIFT and 40 PSI: 12.0 GPM (average - model QD100S)
Recommended Breaker: Voltage and Model Dependent
Impeller: Precision-molded thermoplastic
Pressure Switch Setting: 30 - 50 PSI

Specifications

Brand
Myers
Catalog Number
QD50S
Type
Shallow Well Jet Pump
Series
Quick Draw
HP
1/2
Max GPM
27
Max Lift (Ft.)
25
Shut Off Pressure
65 PSI
Suction
1-1/4" NPT
Discharge Size
1" NPT
Voltage
115/230
Hz
60
Body Construction
Cast Iron
Notes
See Support Documents
