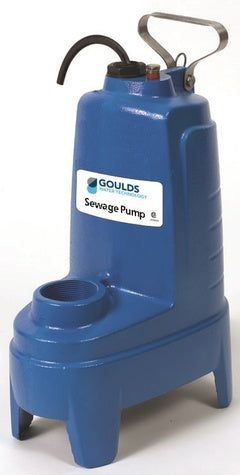

PS51P1F Goulds PS Series Submersible Sewage Pump with Piggyback Float Switch (.5 HP, 3400 RPM, 115 Volt, 60 Hz, Single Phase, 2" Discharge, 13 Max Amps, 20' Cord Length, 2" Solids Handling)

PS51P1F Goulds PS Series Submersible Sewage Pump with Piggyback Float Switch (.5 HP, 3400 RPM, 115 Volt, 60 Hz, Single Phase, 2" Discharge, 13 Max Amps, 20' Cord Length, 2" Solids Handling, 18" Minimum Basin Diameter)

FEATURES:
- Corrosion resistant construction
- Cast iron body
- Thermoplastic impeller and cover.
- Upper sleeve and lower heavy duty ball bearing construction.
- Motor is permanently lubricated for extended service life.
- Powered for continuous operation.
- All ratings are within the working limits of the motor.
- Quick disconnect power cord, 10' and 20’ standard lengths, heavy duty 16/3 SJTW with NEMA three prong, 115 or 230 volt grounding plug.
- Complete unit is heavy duty, portable and compact.
- Mechanical seal is carbon, ceramic, BUNA and stainless steel.
- Stainless steel fasteners

APPLICATIONS:
Specially designed for the following uses:
• Residential sewage systems
• Heavy duty sump/dewatering
• Water transfer

SPECIFICATIONS:
Pump – General:
• Discharge: 2" NPT
• Temperature: 104ºF (40ºC) maximum, continuous  when fully submerged.
• Solids handling: 2" maximum sphere.
• Automatic models include a float switch.
• Manual models available.
PS4 Pump:
• Maximum capacity: 110 GPM
• Maximum head: 23’ TDH
PS5 Pump:
• Maximum capacity: 130 GPM
• Maximum head: 27’ TDH

MOTOR
General:
• Single phase
• 60 Hertz
• 115 and 230 volt
• Built-in thermal overload pro-tection with automatic reset.
• Class B insulation
• Oil-filled design
• High strength carbon steel shaft
PS4 Motor:
• .40 HP, 3400 RPM
• PSC design
PS5 Motor:
• .50 HP, 3400 RPM
• PSC design
