PS2-S01 Berkeley PRO-SOURCE Steel Pressure Tank (2.0 Gallons, In-Line Vertical Model, PS Series)

PS2-S01 Berkeley PRO-SOURCE Steel Pressure Tank (2.0 Gallons, In-Line Vertical Model, PS Series)

👁️ [COUNT] People are currently viewing this product.

PS2-S01

$139.51 USD
$257.00 USD $139.51 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Berkeley PS2-S01, Steel Pressure Tank Type, PS Series, 2.0 Gallons, In-Line Vertical Model,
Applications

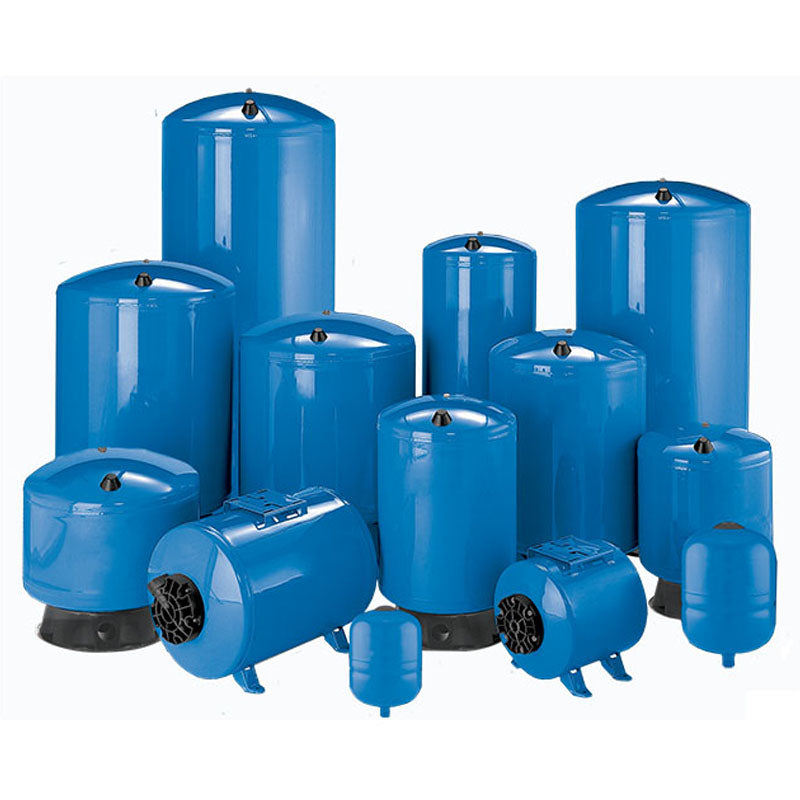

Pro-Source Pressurized Water System Steel Tanks. From 2 - 199 gallons maximum capacity. Both vertical and horizontal models available.
Features
Heavy-Gauge Steel
Electrostatically-Applied Polyester Paint
Seamless, One-Piece Water Cell
One-Piece Composite Service Connection
Tank Sizeing Rule: Size tank for one gallon of drawdown for each gallon per minute at pump capacity. Example: For a 1 HP, 20 GPM unit pumping 20 gallons per minute on a 30-50 pressure switch setting, the properly sized Pro-Source tank is a PS85-T52 which has a 26 gallon drawdown.
MULTIPLE TANK INSTALLATIONS: Pro-Source tanks can be connected together to increase the supply of usable water (drawdown). Two tanks of the same size will double the supply and three tanks will triple the supply.
Heavy-Gauge Metal Construction: Sturdy welded wrapper and head design. Built to last.
Sturdy Base: Tested-tough composite construction.
40 PSI Precharge: Ready for use with 40/60 pressure range systems. Enables installer to reduce pressure depending on pressure switch setting.
Nitrogen-Rich Precharge: Decreases air permeation three to four times over straight air precharge.
Integral Standpipe: Keeps the water cell standing erect, promoting complete flushing of the water entering/exiting the tank.

Specifications

Brand
Berkeley / PRO-SOURCE
Catalog Number
PS2-S01
Type
Steel Pressure Tank
Series
PS
Gallons
2.0
Model
In-Line Vertical
Height (inch/cm)
12.6/32.0
Precharge PSI / kPa
20/137.8
Diameter (inch/cm)
8.4/21.3
Connection Size Female
3/4" NPTM
Weight (lbs/kg)
12.6/5.7
Drawdown in Gallons / Liter (20-40)
0.7/2.65
Drawdown in Gallons / Liter (30-50)
0.6 /2.2
Drawndown in Gallons / Liter (40-60)
NA
Warranty
5 years from date of original installation
