PENTEK

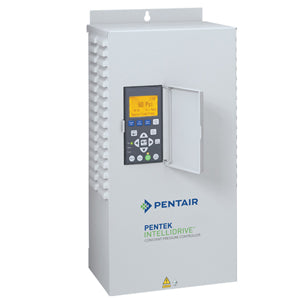

PID10-01 PENTEK Intellidrive VFD (1 or 3 Phase, 1/2 to 1 HP, 190V - 265V, 5 - 9.5 A, Nema3R outdoor)
PID10-01 PENTEK Intellidrive VFD (1 or 3 Phase, 1/2 to 1 HP, 190V - 265V, 5 - 9.5 A, Nema3R outdoor)
SKU:PID10-01
Regular price
$1,086.78 USD
Regular price
$2,561.00 USD
Sale price
$1,086.78 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
PENTEK PID10, Variable Frequency Drive, Well Pump, 1 or 3 Phase, 1/2 to 1 HP, 190V - 265V, Nema3R outdoor,
| Applications | |
| Homeowners with water pressure problems experience weak showers, unclean dishes, dry lawns and more. The PENTEK INTELLIDRIVE Water Pressure Control Center is an Intelligent Variable Frequency Drive that directs changes in submersible pump motor speed, responding to fluctuations in household demand. It maintains constant water pressure, regardless of how many people or appliances are using water at the same time. | |
| Features | |
| Fully Programmable Drive Easily programmable for a variety of applications and specific settings. | |
| 34 Adjustable Programming Parameters Provides ultimate flexibility to fine-tune system operation. | |
| EMI/RFI Filters Eliminate potential interference. | |
| Removable/Replaceable Terminal Blocks For easy wiring of motor and power supply. | |
| Best In Class Lightning Protection. | |
| *Each carton contains the following: PENTEK INTELLIDRIVE Variable Frequency Drive, Pressure Transducer, 10’ Pressure Transducer Cable, Quick Start Guide, Owner’s Manual. | |
Specifications | |
Brand |
PENTEK |
Model Number |
PID10-01 |
Type |
Variable Frequency Drive, Well Pump |
Series |
PENTEK Intellidrive |
Motor Phase |
1 or 3 Phase |
HP |
1/2 to 1 HP |
Input Voltage |
190V - 265V |
Amps @ 2-Wire * 1-Phase |
9.5A @ 2-Wire * 1-Phase |
Amps @ 3-Wire * 1-Phase |
7.5A @ 3-Wire * 1-Phase |
Amps @ 3-Wire * 3-Phase |
5.0A @ 3-Wire * 3-Phase |
Enclosure |
Nema3R outdoor |
Intended For |
Well Pump Systems Only |
Please Note |
Single Phase Drives only work with Submersible Pumps |
Weight lbs. |
25 |
Notes |
See Support Documents |
Support Documents (pdf) |
