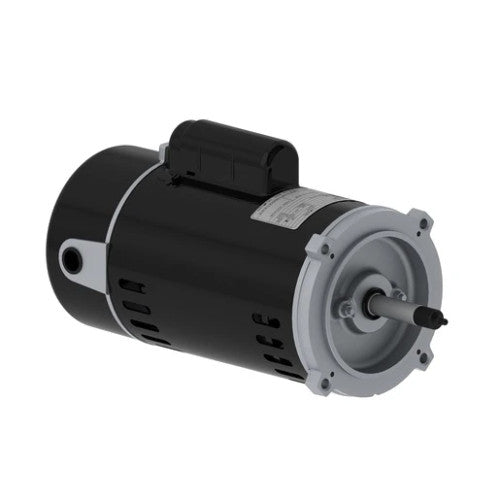

PCQ125 WEG Motor, Spa Pump (2.5 HP, M48Y FRAME, 230 V, SINGLE PHASE, ODP , 3450 RPM)

PCQ125 WEG Motor, Spa Pump (2.5 HP, M48Y FRAME, 230 V, SINGLE PHASE, ODP , 3450 RPM)

PCQ125

$364.38 USD
$364.38 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor PCQ125, 2.5 HP , 3450 RPM, M48Y FRAME, 230 V , SINGLE PHASE, 60 Hz , ODP , Spa Motor
Applications
Pool and Spa
Features
Spa Pump Motors, Single Phase, Rolled Steel, Standard Efficiency, ODP

Tech Specs

Brand
WEG Motors
Model Number
PCQ125
HP
2.5 HP
RPM
3450
FRAME
M48Y
VOLTAGE
230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
32
FEET
NO
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
10.8 A
LOCKED ROTOR CURRENT IL IN
5.9
LOCKED ROTOR CURRENT
63.7 A
LOCKED ROTOR TORQUE
1.7
BREAKDOWN TORQUE
2.1
EFFICIENCY 50
0
EFFICIENCY 75
79
EFFICIENCY 100
80.7
POWER FACTOR 50
0
POWER FACTOR 75
0
POWER FACTOR 100
0.93
SERVICE FACTOR
1.04
INERTIA KGM2
0.00188 kgm
INERTIA SQ FT
0.04461 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +50C
DEGREE OF PROTECTION
IP21
NO-LOAD CURRENT
3.40 A
INSULATION CLASS
B
FULL LOAD TORQUE NM
5.09 Nm
FULL LOAD TORQUE FT
3.75 .ft
SLIP
0.0417
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6203 2RS
BEARINGS N D E
6203 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
