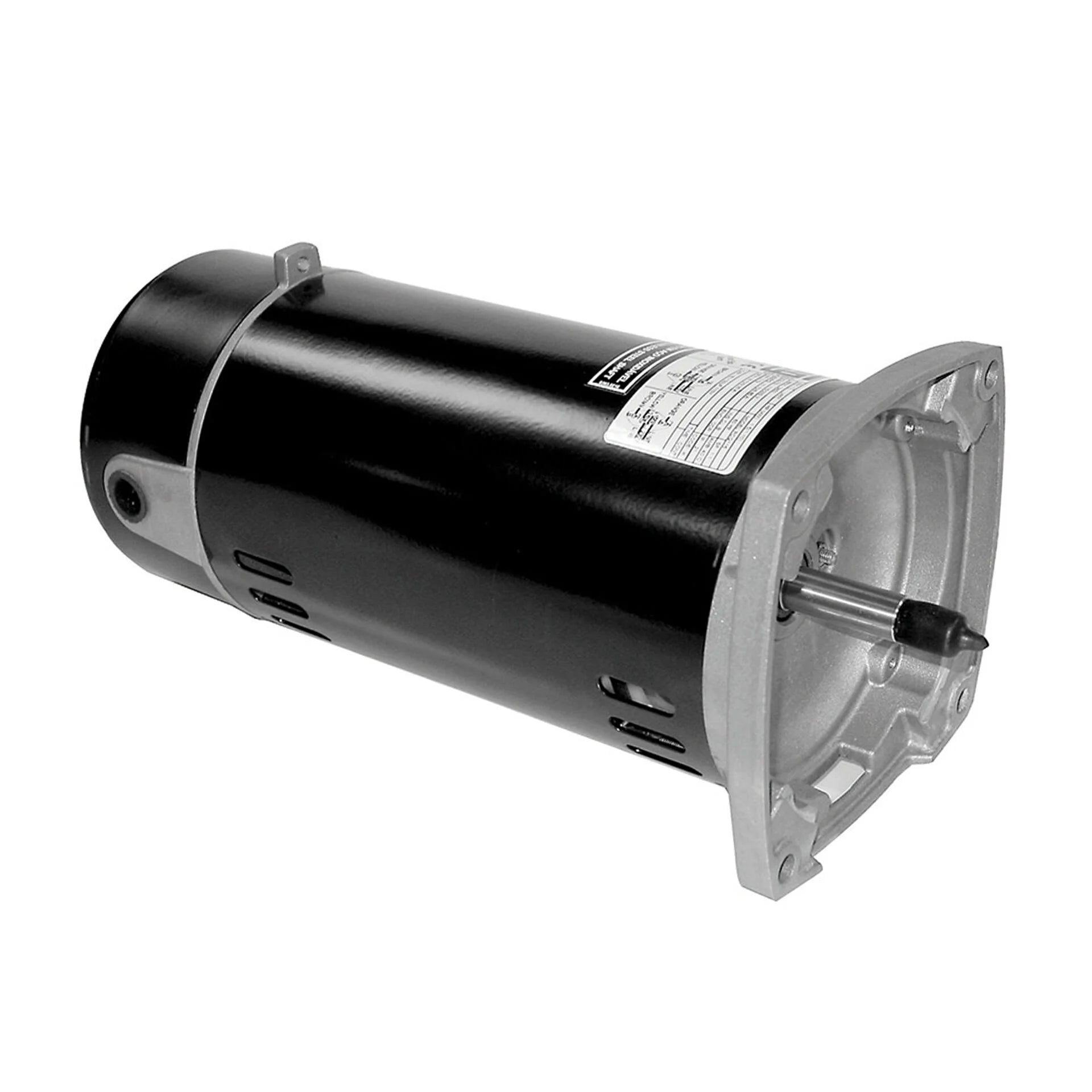

PCQ110 WEG Motor, Spa Pump (1 HP, K48Y FRAME, 115/230 V, SINGLE PHASE, ODP , 3470 RPM)

PCQ110 WEG Motor, Spa Pump (1 HP, K48Y FRAME, 115/230 V, SINGLE PHASE, ODP , 3470 RPM)

👁️ [COUNT] People are currently viewing this product.

PCQ110

$244.75 USD
$275.00 USD $244.75 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

WEG Motor PCQ110, 1 HP , 3470 RPM, K48Y FRAME, 115/230 V , SINGLE PHASE, 60 Hz , ODP , Spa Motor
Applications
Pool and Spa
Features
Spa Pump Motors, Single Phase, Rolled Steel, Standard Efficiency, ODP

Tech Specs

Brand
WEG Motors
Model Number
PCQ110
HP
1 HP
RPM
3470
FRAME
K48Y
VOLTAGE
115/230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
24
FEET
NO
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
12.5/6.25 A
LOCKED ROTOR CURRENT IL IN
5.7
LOCKED ROTOR CURRENT
71.3/35.6 A
LOCKED ROTOR TORQUE
1.4
BREAKDOWN TORQUE
2.5
EFFICIENCY 50
61
EFFICIENCY 75
67
EFFICIENCY 100
70.1
POWER FACTOR 50
0.56
POWER FACTOR 75
0.67
POWER FACTOR 100
0.74
SERVICE FACTOR
1.25
INERTIA KGM2
0.00125 kgm
INERTIA SQ FT
0.02966 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +50C
DEGREE OF PROTECTION
IP21
NO-LOAD CURRENT
8.30/4.15 A
INSULATION CLASS
B
FULL LOAD TORQUE NM
2.02 Nm
FULL LOAD TORQUE FT
1.49 .ft
SLIP
0.0361
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6203 2RS
BEARINGS N D E
6203 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
