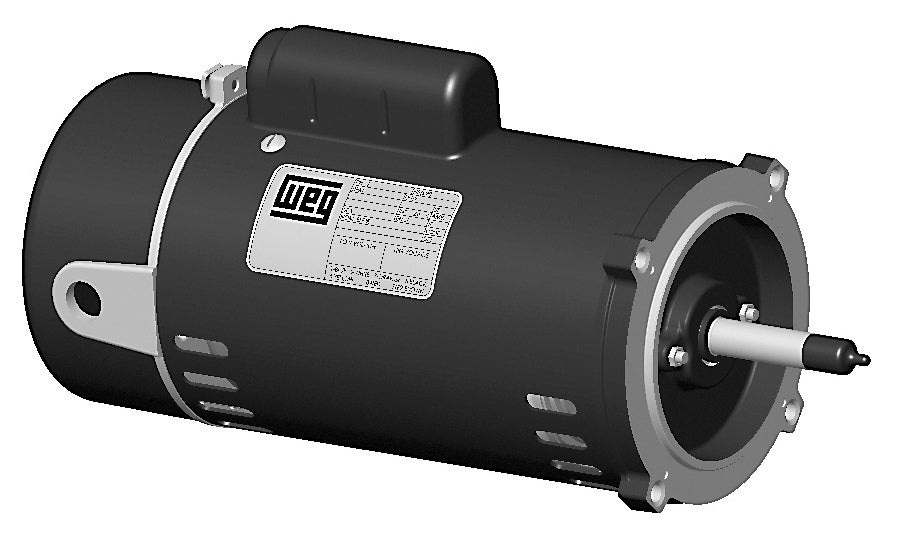

PCJ115 WEG Motor, Pool and Spa (1.5 HP, L56J FRAME, 115/230 V, SINGLE PHASE, ODP , 3450 RPM)

PCJ115 WEG Motor, Pool and Spa (1.5 HP, L56J FRAME, 115/230 V, SINGLE PHASE, ODP , 3450 RPM)

PCJ115

$218.63 USD
$218.63 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor PCJ115, 1.5 HP , 3450 RPM, L56J FRAME, 115/230 V , SINGLE PHASE, 60 Hz , ODP , Pool and Spa Motor
Applications
Pool and Spa
Features
Pool & Spa Pump Motor, Single Phase, Rolled Steel, Standard Efficiency, ODP

Tech Specs

Brand
WEG Motors
Model Number
PCJ115
HP
1.5 HP
RPM
3450
FRAME
L56J
VOLTAGE
115/230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
31
FEET
NO
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
17.7/8.85 A
LOCKED ROTOR CURRENT IL IN
5.9
LOCKED ROTOR CURRENT
104/52.2 A
LOCKED ROTOR TORQUE
1.3
BREAKDOWN TORQUE
2.1
EFFICIENCY 50
64.5
EFFICIENCY 75
69
EFFICIENCY 100
69.6
POWER FACTOR 50
0.61
POWER FACTOR 75
0.72
POWER FACTOR 100
0.79
SERVICE FACTOR
1.1
INERTIA KGM2
0.00152 kgm
INERTIA SQ FT
0.03607 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +50C
DEGREE OF PROTECTION
IP21
NO-LOAD CURRENT
10.5/5.25 A
INSULATION CLASS
B
FULL LOAD TORQUE NM
3.05 Nm
FULL LOAD TORQUE FT
2.25 .ft
SLIP
0.0417
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6203 2RS
BEARINGS N D E
6203 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
