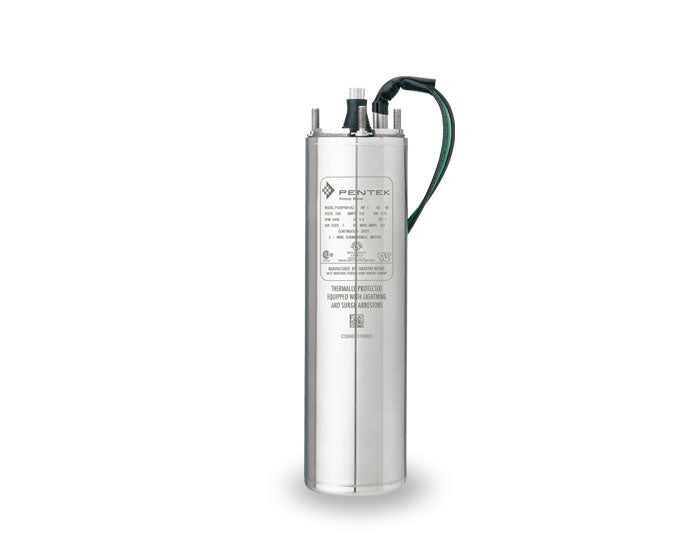

P43B0075A8-C PENTEK 4" Motor (7-1/2 HP, 200 Volts, 3 Phase)

Name: P43B0075A8-C PENTEK 4" Motor (7-1/2 HP, 200 Volts, 3 Phase)
Brand: PENTEK
SKU: P43B0075A8-C
Price: 1675.90 USD
Availability: InStock

SKU:P43B0075A8-C

$1,675.90 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

P43B0075A8-C, PENTEK XE Series Series, 7-1/2 HP, 200 Volts, 3 Phase, 60 Hz, 1.15 Service Factor, PENTEK 4" Motor

Applications
Water systems for residential, industrial, commercial, multiple housing and farm clean water use.

Features
Large high-performance 700# Kingsbury thrust bearing design allow higher thrust loads
Designed to provide many years of service under severe-duty opration
All stainless-steel exterior
Professional-grade Class F compliant motor insulation allows for longer service life
Equipped with Surge Arrestor
Automatic Thermal Protection

Specifications
Brand	STA-RITE
Model Number	P43B0075A8
Type	4" Submersible Motor
Series	PENTEK XE Series
HP	7-1/2
kW	5.6
Volts	200
Phase	3
Hz	60
Service Factor	1.15
Full Load Amps	27.0
Max Load (SF Load Amps)	30.0
Line to Line Resistance Ohms	0.5-0.6
Locked Rotor Amps	165.0
Thrust Rating	1500
Length In.	27.7
Weight lbs.	70
Notes	See Support Documents
