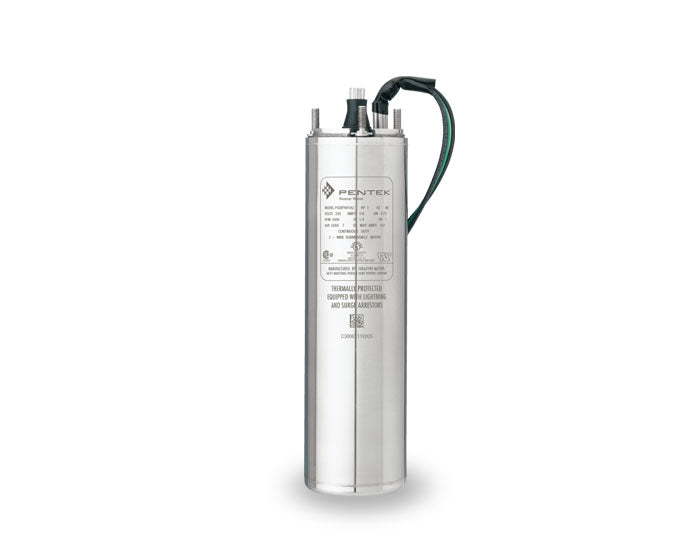

P43B0075A5-C PENTEK 4" Motor (7-1/2 HP, 575 Volts, 3 Phase)

P43B0075A5-C, PENTEK XE Series Series, 7-1/2 HP, 575 Volts, 3 Phase, 60 Hz, 1.15 Service Factor, PENTEK 4" Motor

Applications
Water systems for residential, industrial, commercial, multiple housing and farm clean water use.
Features
Large high-performance 700# Kingsbury thrust bearing design allow higher thrust loads
Designed to provide many years of service under severe-duty opration
All stainless-steel exterior
Professional-grade Class F compliant motor insulation allows for longer service life
Equipped with Surge Arrestor
Automatic Thermal Protection

Specifications
Brand	STA-RITE
Model Number	P43B0075A5
Type	4" Submersible Motor
Series	PENTEK XE Series
HP	7-1/2
kW	5.6
Volts	575
Phase	3
Hz	60
Service Factor	1.15
Full Load Amps	9.1
Max Load (SF Load Amps)	10.0
Line to Line Resistance Ohms	3.6-4.2
Locked Rotor Amps	55.0
Thrust Rating	1500
Length In.	27.7
Weight lbs.	70
Notes	See Support Documents

Support Documents (pdf)
Notes
Motor Manual
