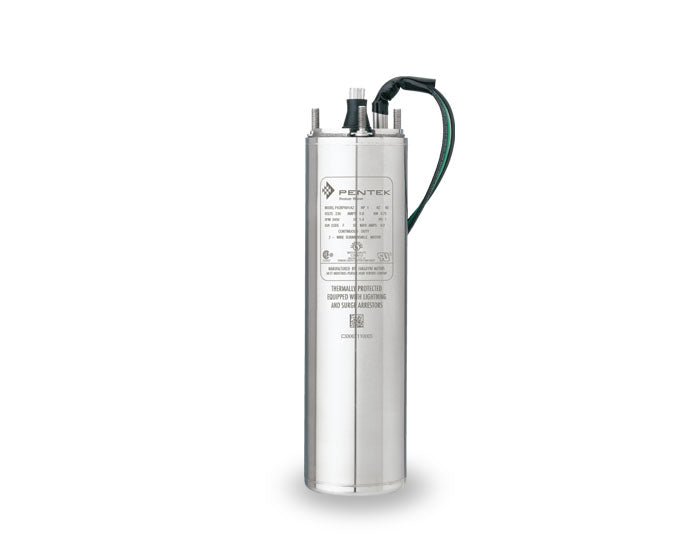

P43B0020A4-C PENTEK 4" Submersible Motor (2 HP, 460 Volts, 3 Phase)

P43B0020A4-C PENTEK 4" Submersible Motor (2 HP, 460 Volts, 3 Phase)

[COUNT] shoppers are looking at this right now

P43B0020A4-C

$726.56 USD
$1,434.00 USD $726.56 USD
Sale Sold out
Shipping calculated at checkout.

View price in cart
P43B0020A4-C, PENTEK XE Series Series, 2 HP, 460 Volts, 3 Phase, 60 Hz, 1.25 Service Factor, PENTEK 4" Motor
Applications
Water systems for residential, industrial, commercial, multiple housing and farm clean water use.
Features
Large high-performance 700# Kingsbury thrust bearing design allow higher thrust loads
Designed to provide many years of service under severe-duty opration
All stainless-steel exterior
Professional-grade Class F compliant motor insulation allows for longer service life
Equipped with Surge Arrestor
Automatic Thermal Protection

Specifications

Brand
STA-RITE
Model Number
P43B0020A4
Type
4" Submersible Motor
Series
PENTEK XE Series
HP
2
kW
1.5
Volts
460
Phase
3
Hz
60
Service Factor
1.25
Full Load Amps
3.3
Max Load (SF Load Amps)
3.8
Line to Line Resistance Ohms
8.00-8.67
Locked Rotor Amps
23.0
Thrust Rating
900
Length In.
13.8
Weight lbs.
27.4
Notes
See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
