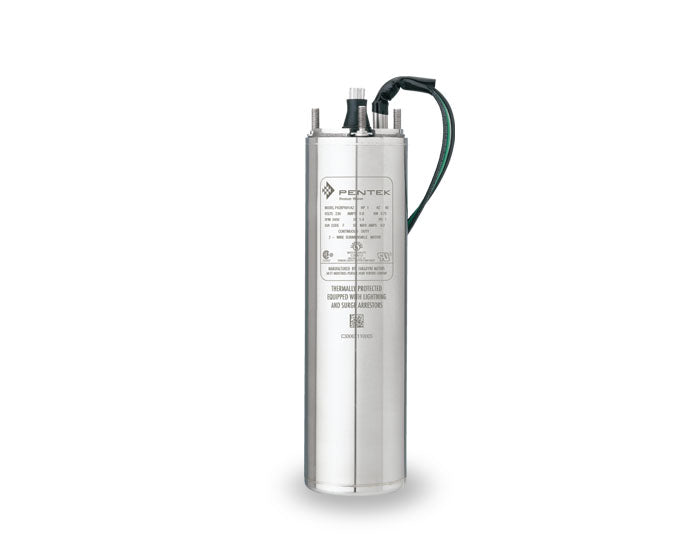

P43B0007A4-C PENTEK 4" Motor (3/4 HP, 460 Volts, 3 Phase)

P43B0007A4-C, PENTEK XE Series Series, 3/4 HP, 460 Volts, 3 Phase, 60 Hz, 1.5 Service Factor, PENTEK 4" Motor

Applications
Water systems for residential, industrial, commercial, multiple housing and farm clean water use.
Features
Large high-performance 700# Kingsbury thrust bearing design allow higher thrust loads
Designed to provide many years of service under severe-duty opration
All stainless-steel exterior
Professional-grade Class F compliant motor insulation allows for longer service life
Equipped with Surge Arrestor
Automatic Thermal Protection

Specifications
Brand	STA-RITE
Model Number	P43B0007A4
Type	4" Submersible Motor
Series	PENTEK XE Series
HP	3/4
kW	0.55
Volts	460
Phase	3
Hz	60
Service Factor	1.5
Full Load Amps	1.7
Max Load (SF Load Amps)	2.0
Line to Line Resistance Ohms	14.4-16.2
Locked Rotor Amps	14
Thrust Rating	700
Length In.	10.8
Weight lbs.	21.4
Notes	See Support Documents
