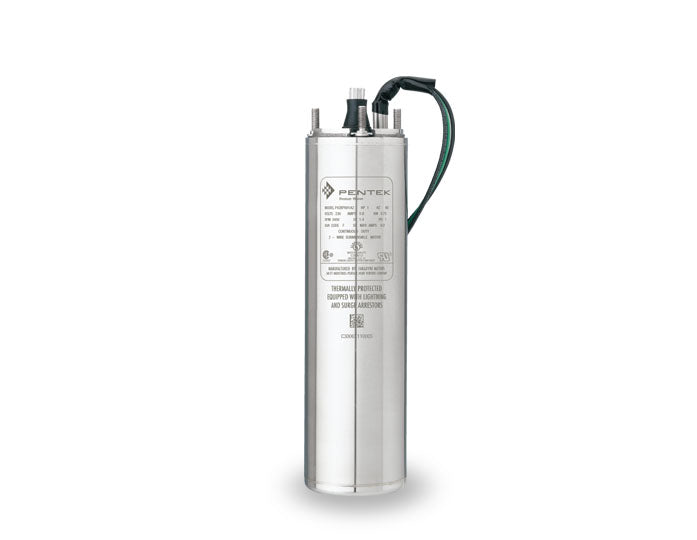

P43B0005A2-C PENTEK 4" Motor (1/2 HP, 230 Volts, 1 Phase, 3 Wire)

Name: P43B0005A2-C PENTEK 4" Motor (1/2 HP, 230 Volts, 1 Phase, 3 Wire)
Brand: PENTEK
SKU: P43B0005A2-01-C
Price: 374.15 USD
Availability: InStock

SKU:P43B0005A2-01-C

$374.15 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

P43B0005A2-C, PENTEK XE Series Series, 1/2 HP, 230 Volts, 1 Phase, 3 Wire , 1.6 Service Factor, PENTEK 4" Motor

Applications
Water systems for residential, industrial, commercial, multiple housing and farm clean water use.

Features
Large high-performance 700# Kingsbury thrust bearing design allow higher thrust loads
Designed to provide many years of service under severe-duty opration
Permanent Split Capacitor (PSC) insures quiet operation and improved operating efficiency
All stainless-steel exterior
Professional-grade Class F compliant motor insulation allows for longer service life
Equipped with Surge Arrestor
Automatic Thermal Protection

Specifications
Brand	STA-RITE
Model Number	P43B0005A2
Type	4" Submersible Motor
Series	PENTEK XE Series
HP	1/2
kW	0.37
Volts	230
Phase	1
Hz	60
# of Wires	3 Wire
Service Factor	1.6
Full Load Amps	4.1
Max Load (SF Load Amps)	4.9
Locked Rotor Amps	22.3
Main Resistance	4.2-4.9
Start Resistance	17.4-18.7
Thrust Rating	700
Recommended Control	SMC-CR0521
Control	Not Included
Length In.	9.7
Weight lbs.	18.1
Notes	See Support Documents
