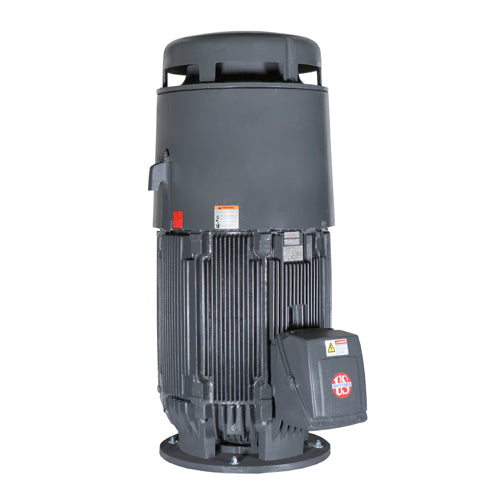

NT32P3BE U.S. Motors Vertical Solid Shaft Normal Thrust Motor (1-1/2 HP, 230/460 Volts, 1200 RPM)
NT32P3BE U.S. Motors Vertical Solid Shaft Normal Thrust Motor (1-1/2 HP, 230/460 Volts, 1200 RPM)
SKU:NT32P3BE
Regular price
$1,900.96 USD
Regular price
Sale price
$1,900.96 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson NT32P3BE HP: 1-1/2, RPM: 1200, Volts: 230/460, Frame: 182VP, Down Thrust (lbs.): 4.5/2.3, Enclosure: TEFC, Efficiency: Premium Efficient, P Base, Three Phase
| Applications | |
| For use on Vertical End Suction, Short Couple Pumps, Centrifugal and Non-Clog Pumps. | |
| Features | |
| 30 HP & Below Can Be Re-rated For 208/415 Volt | 50 Hertz Operation at 1.0 Service Factor |
| Class F Insulation, Class B Rise At Full Load | 40C Ambient, NEMA Design B Performance |
| 230/460 Volt Motors Suitable For 230 Volt Part Winding Start | Suitable For Operation On VFD Per NEMA MG-1 Part 30 |
| 1.15 Service Factor (Sine Wave), 40C Ambient | Corrosion Resistant Mill & Chemical Duty Paint |
Tech Specs | |
Brand |
U.S. Motors |
Model Number |
NT32P3BE |
HP |
1-1/2 |
RPM |
1200 |
Volts |
230/460 |
Frame |
182VP |
Down Thrust (lbs.) |
4.5/2.3 |
Base Dia (in.) |
10 |
Enclosure |
TEFC |
Apx. Wt. (lb) |
400 |
Efficiency |
Premium Efficient |
Phase |
Three |
Base |
"P" Base |
5 FL Efficiency |
87.5 |
Type |
TVS |
Notes |
See Product Literature |
Support Documents (pdf) | ||||
| Product Literature | ||||
