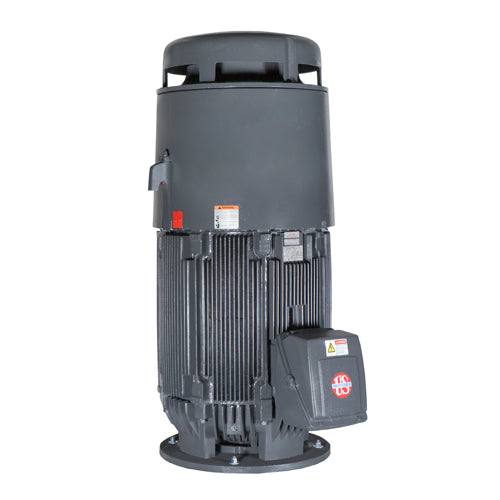

NT32P2BE U.S. Motors Vertical Solid Shaft Normal Thrust Motor (1-1/2 HP, 230/460 Volts, 1800 RPM)
NT32P2BE U.S. Motors Vertical Solid Shaft Normal Thrust Motor (1-1/2 HP, 230/460 Volts, 1800 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:NT32P2BE
Regular price
$1,347.09 USD
Regular price
$0.00 USD
Sale price
$1,347.09 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
US Motors Emerson NT32P2BE HP: 1-1/2, RPM: 1800, Volts: 230/460, Frame: 145VP, Down Thrust (lbs.): 4.0/2.0, Enclosure: TEFC, Efficiency: Premium Efficient, P Base, Three Phase
| Applications | |
| For use on Vertical End Suction, Short Couple Pumps, Centrifugal and Non-Clog Pumps. | |
| Features | |
| 30 HP & Below Can Be Re-rated For 208/415 Volt | 50 Hertz Operation at 1.0 Service Factor |
| Class F Insulation, Class B Rise At Full Load | 40C Ambient, NEMA Design B Performance |
| 230/460 Volt Motors Suitable For 230 Volt Part Winding Start | Suitable For Operation On VFD Per NEMA MG-1 Part 30 |
| 1.15 Service Factor (Sine Wave), 40C Ambient | Corrosion Resistant Mill & Chemical Duty Paint |
Tech Specs | |
Brand |
U.S. Motors |
Model Number |
NT32P2BE |
HP |
1-1/2 |
RPM |
1800 |
Volts |
230/460 |
Frame |
145VP |
Down Thrust (lbs.) |
4.0/2.0 |
Base Dia (in.) |
10 |
Enclosure |
TEFC |
Apx. Wt. (lb) |
300 |
Efficiency |
Premium Efficient |
Phase |
Three |
Base |
"P" Base |
5 FL Efficiency |
86.5 |
Type |
TVS |
Notes |
See Product Literature |
Support Documents (pdf) | ||||
| Product Literature | ||||
