U.S. Motors

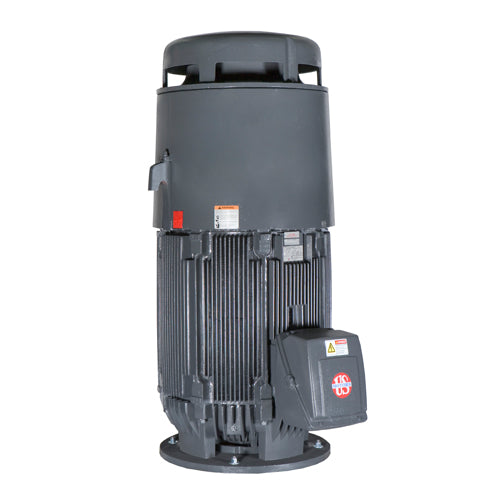

NT1P3BE U.S. Motors Vertical Solid Shaft Normal Thrust Motor (1 HP, 230/460 Volts, 1200 RPM)

NT1P3BE U.S. Motors Vertical Solid Shaft Normal Thrust Motor (1 HP, 230/460 Volts, 1200 RPM)

[COUNT] shoppers are looking at this right now

NT1P3BE

$1,776.01 USD
$0.00 USD $1,776.01 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson NT1P3BE HP: 1, RPM: 1200, Volts: 230/460, Frame: 145VP, Down Thrust (lbs.): 3.6/1.8, Enclosure: TEFC, Efficiency: Premium Efficient, P Base, Three Phase

Applications
For use on Vertical End Suction, Short Couple Pumps, Centrifugal and Non-Clog Pumps.
Features
30 HP & Below Can Be Re-rated For 208/415 Volt 50 Hertz Operation at 1.0 Service Factor
Class F Insulation, Class B Rise At Full Load 40C Ambient, NEMA Design B Performance
230/460 Volt Motors Suitable For 230 Volt Part Winding Start Suitable For Operation On VFD Per NEMA MG-1 Part 30
1.15 Service Factor (Sine Wave), 40C Ambient Corrosion Resistant Mill & Chemical Duty Paint

Tech Specs

Brand
U.S. Motors
Model Number
NT1P3BE
HP
1
RPM
1200
Volts
230/460
Frame
145VP
Down Thrust (lbs.)
3.6/1.8
Base Dia (in.)
10
Enclosure
TEFC
Apx. Wt. (lb)
340
Efficiency
Premium Efficient
Phase
Three
Base
"P" Base
5 FL Efficiency
82.5
Type
TVS
Notes
See Product Literature

Support Documents (pdf)

Product Literature
