Myers Pumps

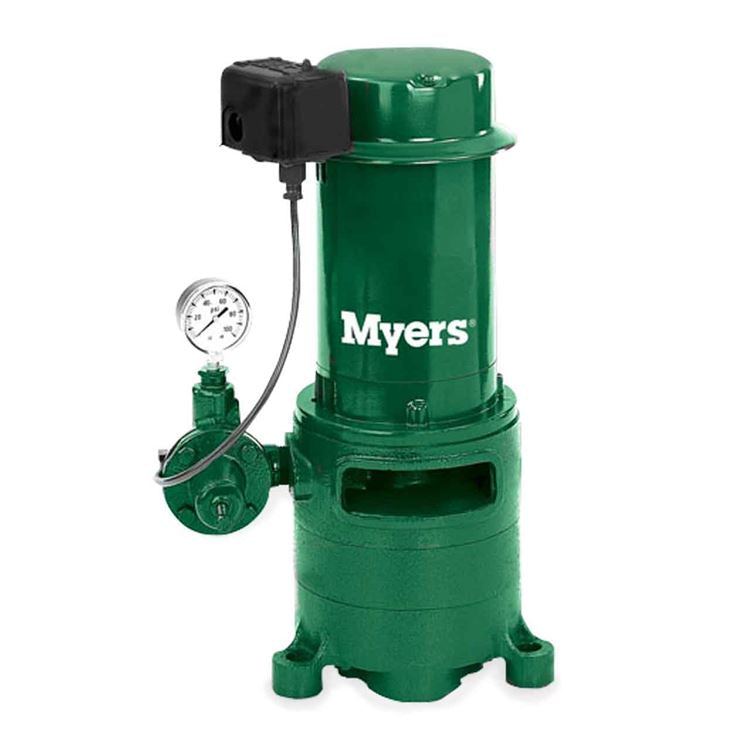

MVPH-200 Myers Pumps Vertical Deep Well Jet Pumps (2 HP, 230 Volts, 1-1/4" Suction)
MVPH-200 Myers Pumps Vertical Deep Well Jet Pumps (2 HP, 230 Volts, 1-1/4" Suction)
SKU:MVPH-200
Regular price
$1,705.13 USD
Regular price
Sale price
$1,705.13 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Myers Pumps MVPH-200, MVPH , 2 HP, 230 Volts, 1-1/4" Suction,
| Applications | |
| Supply water systems and sprinkling systems for homes, farms and cottages. The MVPH Series Vertical Jet Pumps are the industry standard deep well jet pumps for overthe-well bolt-on installations. The MVPH Series Jet Pumps include the pre-plumbed external automatic regulator, pressure gauge, pressure switch, and a complete line of casing adapters for 4" double pipe, 2" or 3" single pipe jet packages. | |
| Features | |
| Automatic Pressure Regulator Faster-acting and quieter, design eliminates hunting for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells. | |
| Quality Construction Precision-machined, close-grained cast iron pump body and base are specially treated to resist corrosion. | |
| Noryl Impellers Precision molded for perfect balance, and ultra-smooth for highest performance and efficiency. | |
| Pressure Switch High quality. Differential and cut-in/ cut-out pressure settings are adjustable. | |
| Motor Windings Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life. | |
| Mechanical Shaft Seal Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection. | |
| Dustproof Cover All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure. | |
| Balanced Rotor Rotor is die cast under high pressures for uniform performance and greater efficiency; dynamically balanced. | |
| Heavy-duty Ball Bearings Permanently lubricated sealed bearings are extensively tested to ensure extended life and smooth, quiet operation. | |
| Pump and Motor Shaft One piece threaded shaft for positive impeller drive and alignment. Shaft is stainless steel for maximum corrosion resistance. | |
Specifications | |
Brand |
Myers Pumps |
Catalog Number |
MVPH-200 |
Type |
VERTICAL MULTI-STAGE DEEP WELL JET PUMPS |
Series |
MVPH |
Model |
MVPH-200 |
HP |
2 |
Volts |
230 |
Description |
Base Mounted Pump |
Max Pressure Reg. Setting |
95 PSI |
Suction |
1-1/4" |
Drive |
1-1/4" |
Discharge |
1" |
Approx. Weight |
125 |
ADAPTER FLANGE |
J216-27 ( 1-1/4" x 1-1/4") |
Length |
20-15/16" |
Construction |
Rugged cast iron |
Pump and Motor Shaft |
416 Stainless Steel |
Impellers |
Noryl |
Diffuser |
Close-grained cast iron |
Notes |
See support documents |
Pump Curves |
See support documents below |
Support Documents (pdf) |
