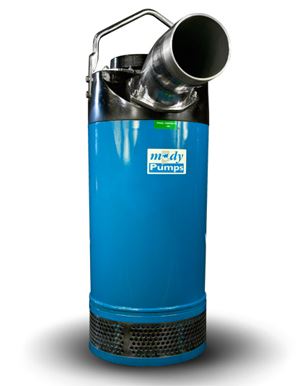

M556T Mody Pump, Dewatering Pump (10 HP, 240/480 V, 3" Discharge, Three Phase, 28/14 Amps)
M556T Mody Pump, Dewatering Pump (10 HP, 240/480 V, 3" Discharge, Three Phase, 28/14 Amps)
[COUNT] shoppers are looking at this right now
No reviews
SKU:M556T
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Mody M556T, 10 HP, 240/480 V, 3" Discharge, Three Phase, 28/14 Amps
| Applications | |
| PORTABLE ELECTRIC SUBMERSIBLE PUMP FOR CORROSIVE & ABRASIVE APPLICATIONS | |
| Features | |
| 2-pole induction continuous rated motor with squirrel cage rotor | |
| Max. temperature of the pump liquid : 104F/40C | |
| Max. start/stop per hour : 15 | |
| Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard. | |
| Epoxy coated Aluminum Outer Casing | |
Specifications | |
Brand |
Mody |
Catalog Number |
M556T |
Type |
Submersible Dewatering Pump |
Series |
Industrial Series |
Description |
Heavy Duty Dewatering |
HP |
10 |
Voltage |
240/480 |
Discharge |
3" |
Phase |
Three |
Amperage |
28/14 |
Height |
33" |
Width |
13" |
Hole Size |
0.25" |
Weight |
161 lbs. |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
