Sta-Rite Pumps

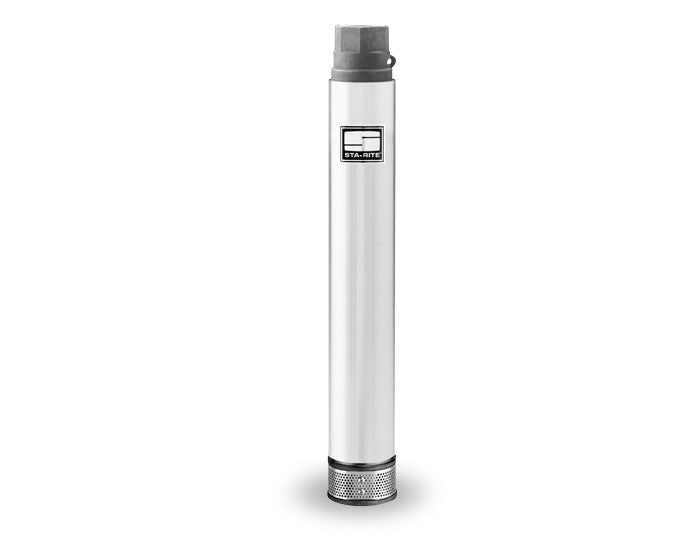

L90HF75-01 STA-RITE 4" Submersible Pump - End Only (7-1/2 HP, 17 Stages, 90 GPM @ 225' , 2" Discharge)

L90HF75-01 STA-RITE 4" Submersible Pump - End Only (7-1/2 HP, 17 Stages, 90 GPM @ 225' , 2" Discharge)

👁️ [COUNT] People are currently viewing this product.

L90HF75-01

$2,156.36 USD
$6,007.00 USD $2,156.36 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

STA-RITE L90HF75, 7-1/2 HP, 17 Stages, 90 GPM @ 225' , 2" Discharge, 3-7/8" Pump Diameter, 4" Required Motor Diameter,

Applications
Water systems for residential, industrial, commercial, multiple housing and farm use.
Features
FDA compliant engineered composite and stainless steel components
Heavy-duty 300 grade stainless steel discharge provides smooth water passage to column pipe
Large wrench flats and rope hole
Field-proven, sealed and lubricated top bearing assembly keeps abrasives out
20% glass-reinforced polycarbonate impellers to resist abrasives and provide smooth water passage for minimal friction loss
Urethane diffuser bearings at each stage provide radial protection and stability and excellent resistance to sand damage
300 grade precision cast stainless steel motor bracket
300 grade "treated" stainless steel pump shaft is corrosion-resistant

Specifications

Brand
STA-RITE
Model Number
L90HF75
Type
High-Flo 4" Submersible Pump
Series
90 GPM Series
HP
7-1/2
Stages
17
GPM @ Ft of Head
90 GPM @ 225'
Discharge
2"
Pump Diameter
3-7/8"
Required Motor Diameter
4"
Pump Construction
Stainless Steel
Contents
Pump End Only
Length In.
56
Weight lbs.
26
Warranty
1 Year Warranty
Notes & Pump Curve
See Support Documents
Pump Manual
See Support Documents

Support Documents (pdf)
