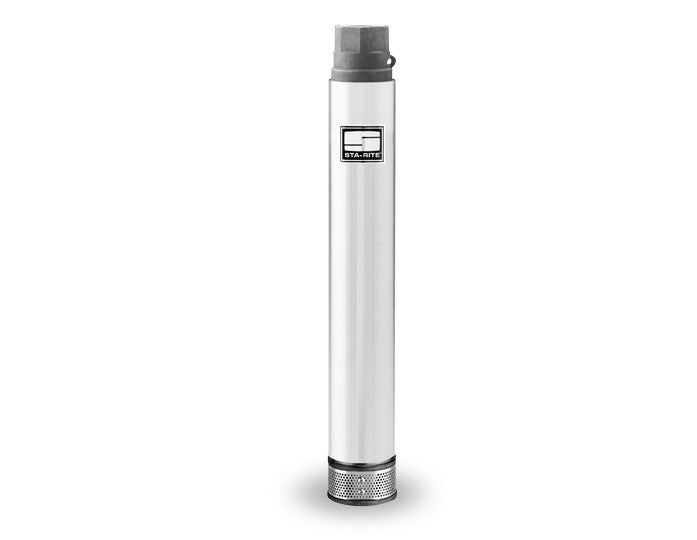

L90HF30-01 STA-RITE 4" Submersible Pump - End Only (3 HP, 7 Stages, 90 GPM @ 90' , 2" Discharge)

Name: L90HF30-01 STA-RITE 4" Submersible Pump - End Only (3 HP, 7 Stages, 90 GPM @ 90' , 2" Discharge)
Brand: Sta-Rite Pumps
SKU: L90HF30-01
Price: 1002.97 USD
Availability: InStock

SKU:L90HF30-01

$1,002.97 USD

~~$2,794.00 USD~~ $1,002.97 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

STA-RITE L90HF30, 3 HP, 7 Stages, 90 GPM @ 90' , 2" Discharge, 3-7/8" Pump Diameter, 4" Required Motor Diameter,

Applications
Water systems for residential, industrial, commercial, multiple housing and farm use.

Features
FDA compliant engineered composite and stainless steel components
Heavy-duty 300 grade stainless steel discharge provides smooth water passage to column pipe
Large wrench flats and rope hole
Field-proven, sealed and lubricated top bearing assembly keeps abrasives out
20% glass-reinforced polycarbonate impellers to resist abrasives and provide smooth water passage for minimal friction loss
Urethane diffuser bearings at each stage provide radial protection and stability and excellent resistance to sand damage
300 grade precision cast stainless steel motor bracket
300 grade "treated" stainless steel pump shaft is corrosion-resistant

Specifications
Brand	STA-RITE
Model Number	L90HF30
Type	High-Flo 4" Submersible Pump
Series	90 GPM Series
HP	3
Stages	7
GPM @ Ft of Head	90 GPM @ 90'
Discharge	2"
Pump Diameter	3-7/8"
Required Motor Diameter	4"
Pump Construction	Stainless Steel
Contents	Pump End Only - Motor not included
Length In.	26-5/8
Weight lbs.	17
Warranty	1 Year Warranty
Notes & Pump Curve	See Support Documents
Pump Manual	See Support Documents
