Sta-Rite Pumps

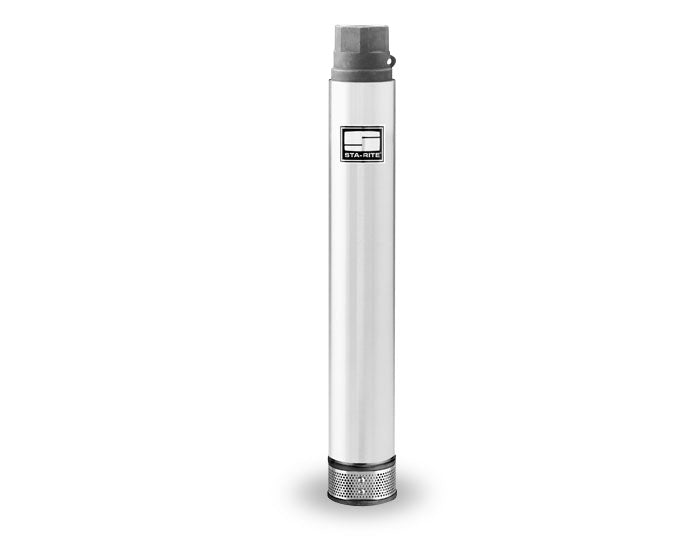

L90HF20-01 STA-RITE 4" Submersible Pump - End Only (2 HP, 5 Stages, 90 GPM @ 60' , 2" Discharge)

L90HF20-01 STA-RITE 4" Submersible Pump - End Only (2 HP, 5 Stages, 90 GPM @ 60' , 2" Discharge)

SKU:L90HF20-01

Regular price $845.38 USD
Regular price $2,355.00 USD Sale price $845.38 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

STA-RITE L90HF20, 2 HP, 5 Stages, 90 GPM @ 60' , 2" Discharge, 3-7/8" Pump Diameter, 4" Required Motor Diameter,
Applications
Water systems for residential, industrial, commercial, multiple housing and farm use.
Features
FDA compliant engineered composite and stainless steel components
Heavy-duty 300 grade stainless steel discharge provides smooth water passage to column pipe
Large wrench flats and rope hole
Field-proven, sealed and lubricated top bearing assembly keeps abrasives out
20% glass-reinforced polycarbonate impellers to resist abrasives and provide smooth water passage for minimal friction loss
Urethane diffuser bearings at each stage provide radial protection and stability and excellent resistance to sand damage
300 grade precision cast stainless steel motor bracket
300 grade "treated" stainless steel pump shaft is corrosion-resistant

Specifications

Brand
STA-RITE
Model Number
L90HF20
Type
High-Flo 4" Submersible Pump
Series
90 GPM Series
HP
2
Stages
5
GPM @ Ft of Head
90 GPM @ 60'
Discharge
2"
Pump Diameter
3-7/8"
Required Motor Diameter
4"
Pump Construction
Stainless Steel
Contents
Pump End Only
Length In.
21
Weight lbs.
15
Warranty
1 Year Warranty
Notes & Pump Curve
See Support Documents
Pump Manual
See Support Documents
