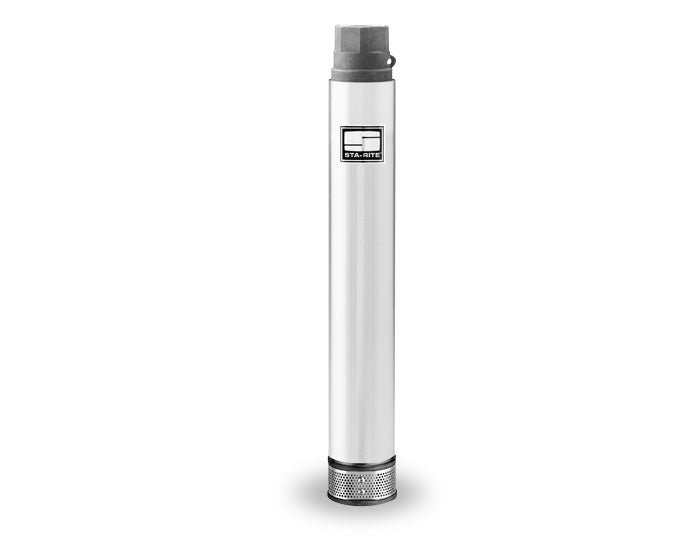

L90HF100-01 Pentair Sta-Rite JP Series 4" Submersible Well Pump - End Only (10 HP, 23 Stages, 90 GPM @ 290', 2" Discharge, Motor not included)

L90HF100-01 Pentair Sta-Rite JP Series 4" Submersible Well Pump - End Only (10 HP, 23 Stages, 90 GPM @ 290', 2" Discharge, Motor not included)

[COUNT] shoppers are looking at this right now

L90HF100-01

$3,306.65 USD
$8,267.00 USD $3,306.65 USD
Sale Sold out
Shipping calculated at checkout.

View price in cart
STA-RITE L90HF100, 10 HP, 23 Stages, 90 GPM @ 290' , 2" Discharge, 3-7/8" Pump Diameter, 4" Required Motor Diameter,
Applications
Water systems for residential, industrial, commercial, multiple housing and farm use.
Features
FDA compliant engineered composite and stainless steel components
Heavy-duty 300 grade stainless steel discharge provides smooth water passage to column pipe
Large wrench flats and rope hole
Field-proven, sealed and lubricated top bearing assembly keeps abrasives out
20% glass-reinforced polycarbonate impellers to resist abrasives and provide smooth water passage for minimal friction loss
Urethane diffuser bearings at each stage provide radial protection and stability and excellent resistance to sand damage
300 grade precision cast stainless steel motor bracket
300 grade "treated" stainless steel pump shaft is corrosion-resistant

Specifications

Brand
STA-RITE
Model Number
L90HF100
Type
High-Flo 4" Submersible Pump
Series
90 GPM Series
HP
10
Stages
23
GPM @ Ft of Head
90 GPM @ 290'
Discharge
2"
Pump Diameter
3-7/8"
Required Motor Diameter
4"
Pump Construction
Stainless Steel
Contents
Pump End Only
Length In.
72-3/8
Weight lbs.
35
Warranty
1 Year Warranty
Notes & Pump Curve
See Support Documents
Pump Manual
See Support Documents

Support Documents (pdf)
