Sta-Rite Pumps

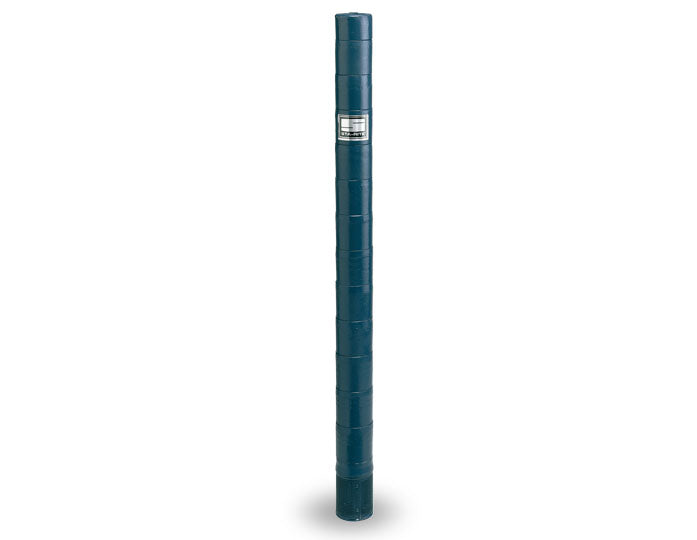

L70L4-05 STA-RITE 4" Submersible Pump - End Only (10 Required HP, 70GPM @ 340ft Of Head, 23 Stages, 2" Discharge)

L70L4-05 STA-RITE 4" Submersible Pump - End Only (10 Required HP, 70GPM @ 340ft Of Head, 23 Stages, 2" Discharge)

👁️ [COUNT] People are currently viewing this product.

L70L4-05

$3,286.77 USD
$9,156.00 USD $3,286.77 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

STA-RITE L70L4, 10 Required HP, 70GPM @ 340ft Of Head, 23 Stages, 2" Discharge,

Applications
Residential, industrial, commercial, multiple housing and farm use.
Features
Heavy duty cast iron discharge provides smooth water passage to column pipe
Standard NPT threads
Glass-reinforced polycarbonate impellers resist abrasives and provide smooth water passages for minimum friction loss. Ensures optimum pump efficiency
Bronze upthrust bearing provides positive momentary upthrust protection during start-up
Efficient hydraulic intake design minimuzes entrance losses, ensuring maximum pump performance
Precision straightened stainless steel pump shaft
Stainless steel pump/motor coupling
Stainless steel intake screen offers maximum corrosion resistance

Specifications

Brand
STA-RITE
Model Number
L70L4
Type
4" Submersible Pump
STA-RITE Series
70 GPM Series
Required HP
10
GPM @ ft of head
70GPM @ 340ft
Stages
23
Discharge
2"
Required Motor Diameter
4"
Contents
Pump End Only
Weight
106
Length
83-1/8
Warranty
1 Year
Notes & Pump Curve
see Support Documents
Pump Manual
see Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
