• L15P4FH-05 Pentair Sta-Rite JP Series 4" Submersible Well Pump - End Only (1-1/2 HP, 12 Stages, 15 GPM @ 260', 1-1/4" Discharge, Motor not included) - KG Power Systems
1 1

Sta-Rite Pumps

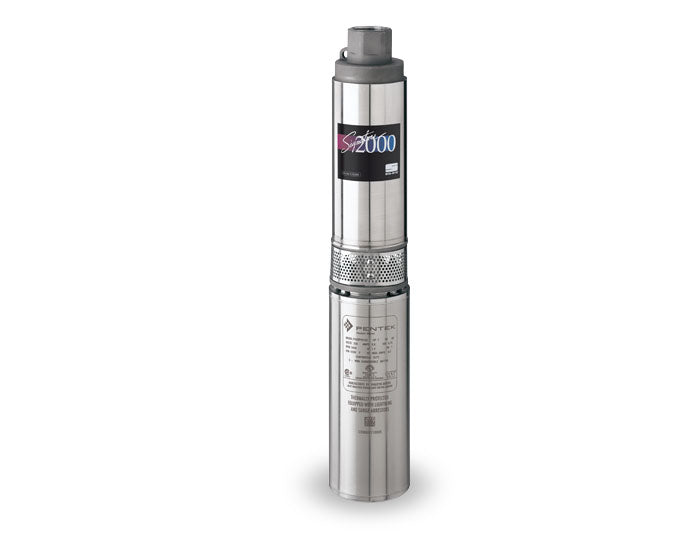

L15P4FH-05 Pentair Sta-Rite JP Series 4" Submersible Well Pump - End Only (1-1/2 HP, 12 Stages, 15 GPM @ 260', 1-1/4" Discharge, Motor not included)

L15P4FH-05 Pentair Sta-Rite JP Series 4" Submersible Well Pump - End Only (1-1/2 HP, 12 Stages, 15 GPM @ 260', 1-1/4" Discharge, Motor not included)

[COUNT] shoppers are looking at this right now

L15P4FH-05

$952.43 USD
$2,380.00 USD $952.43 USD
Sale Sold out
Shipping calculated at checkout.

View price in cart
STA-RITE L15P4FH, 1-1/2 HP, 12 Stages, 15 GPM Series, 15 GPM @ 260' , 1-1/4" Discharge, 3-7/8" Pump Diameter, Stainless Steel Pump Construction,

Applications
Water systems for residential, industrial, commercial, multiple housing and farm use.
Features
Narrow, 3-3/4" diameter to fit inside 4" well casings
SignaSeal staging system incorporates a harder-than-sand ceramic wear surface and a floating impeller design - which together literally pulverize sand and small debris. This proven feature reduces lock-ups, dry-runs, and abrasive wear.
Floating Stage Design is engineered to transmit forces away from the motor bearing and through the pump housing. This reduces premature wear and misalignment.
Fully-Enclosed Shaft Bearing creates a pressure zone that prevents sand & water from entering. Eliminates wear and misalignment.
Wear Ring forms a seal between impeller hub and suction cap for low friction and no unwanted recirculation of water.
Corrosion resistant 300 grade stainless steel discharge for durability in aggressive water.

Specifications

Brand
STA-RITE
Model Number
L15P4FH
Type
4" Submersible Pump
STA-Rite Series
HS Series
HP
1-1/2
Stages
12
GPM Series
15
GPM @ Ft of Head
15 GPM @ 260'
Discharge
1-1/4"
Pump Diameter
3-7/8"
Required Motor Diameter
4"
Pump Construction
Stainless Steel
Contents
Pump End Only
Weight lbs.
13
Warranty
1 Year Warranty
Notes & Pump Curve
See Support Documents
Pump Manual
See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
