Sta-Rite Pumps

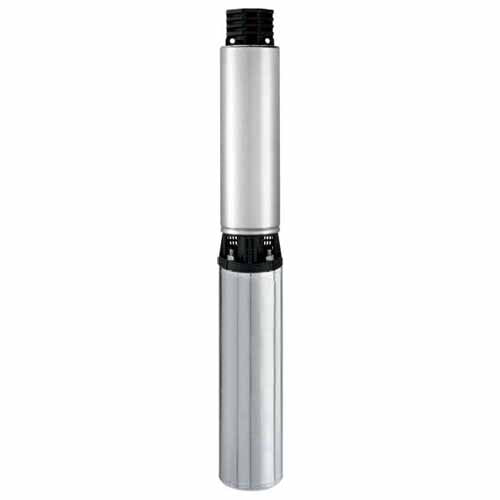

L10P4EJ-07 Sta-Rite 4" Submersible Pump - End Only (1 HP, 13 Stages, 1-1/4" NPT Discharge)
L10P4EJ-07 Sta-Rite 4" Submersible Pump - End Only (1 HP, 13 Stages, 1-1/4" NPT Discharge)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:L10P4EJ-07
Regular price
$567.72 USD
Regular price
$1,476.00 USD
Sale price
$567.72 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Sta-Rite Pumps L10P4EJ, 4" Submersible Pump - End Only Type, 1 HP, 13 Stages, 1-1/4" NPT Discharge Size,
| Applications | |
| Water systemsfor residential, industrial, commercial, multiple housing and farm use. | |
| Features | |
| Proven Staging System: Our proven SignaSeal staging system incorporates a harder-than-sand ceramic wear surface that when incorporated with our floating impeller design, greatly reduces problems with abrasives, sand lock-up and running dry. | |
| Discharge: Corrosion-resistant fiberglassreinforced thermoplastic for durability in aggressive water. Large octagon wrench area for ease of installation. | |
| Discharge Bearing: Exclusive self-lubricating Nylatron bearing resists wear from sand. | |
| Intake: Corrosion-resistant fiberglassreinforced thermoplastic for durability in aggressive water. | |
| Shaft: Positive drive from 7/16" hexagonal heavy-duty 300 grade stainless steel. | |
| Coupling: Stainless steel press fit to pump shaft. Couples to all standard NEMA motors. | |
| Shell: Crimped shell. | |
| Hardware: All screws, washers and nuts are corrosion-resistant 300 grade stainless steel. | |
| Check Valve: Spring-loaded check valve. | |
| Cable Guard: Corrosion-resistant stainless steel guard protects motor leads. Tapered ends prevent pump from catching on well. | |
| Intake Screen: Molded-in screen. | |
Specifications | |
Brand |
Sta-Rite Pumps |
Catalog Number |
L10P4EJ |
Type |
4" Submersible Pump - End Only |
Series |
JP |
HP |
1 |
Stages |
13 |
Phase |
3 |
Voltage |
460 |
Motor (Not included) |
P43B0010A4 |
GPM |
10 |
Length (inches) |
15-1/2 |
Discharge Size |
1-1/4" NPT |
Shell |
Stainless steel |
Diameter |
3-7/8" |
Discharge |
Fiberglass-reinforced thermoplastic |
Notes |
See support documents |
Support Documents (pdf) |
