U.S. Motors

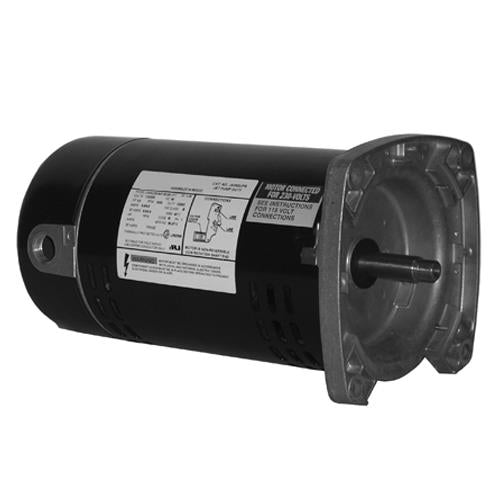

JS2002-2 U.S. Motors Jet Pump Motor (2 HP, 48Y Frame, Square Flange, 3600 RPM)
JS2002-2 U.S. Motors Jet Pump Motor (2 HP, 48Y Frame, Square Flange, 3600 RPM)
SKU:JS2002-2
Regular price
$392.47 USD
Regular price
Sale price
$392.47 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson JS2002-2, HP: 2, RPM: 3600, Volts: 230, Frame: 48Y, Motor Face: Square Flange, Enclosure: ODP, Type: Single Phase Jet, Booster and Centrifugal Pump Motor, Motor Start: Capacitor Start ,
| Applications |
| For jet pumps, booster pumps, centrifugal pumps, lawn sprinkler pumps. |
| Features |
| 303 Stainless Steel Shaft; C-Face: 7/16-20 UNF2A thread; Square Flange: 1/2-20 UNC-2A thread; Ball Bearings (Locked Drive End Bearing); Continuous Duty; 60 Hertz; E-Z Access Motor Cover; 40C Ambient; Automatic Reset Thermal Overload Protector; Round Frame (Without Base), NEMA 56C C-Face or Square Flange Mounting; Power Leads Supplied For Proper Connection To Pressure Switch; Voltage Selector Switch (Catalog Numbers Ending With "-2V" and "UPR") |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Pump Motor |
Model Number |
JS2002-2 |
HP |
2 |
RPM |
3600 |
Volts |
230 |
SF |
1.3 |
Frame |
48Y |
Full Load Amps |
11 |
"C" Dim. |
13.45 |
Apx. Wt. (lb) |
27 |
Motor Face |
Square Flange |
Phase |
Single |
Motor Mount |
Footless |
Enclosure |
ODP |
Type |
Single Phase Jet, Booster and Centrifugal Pump Motor |
Notes |
Two Compartment, E-Z Access Motor Cover |
Motor Start |
Capacitor Start |
