Goulds Pumps

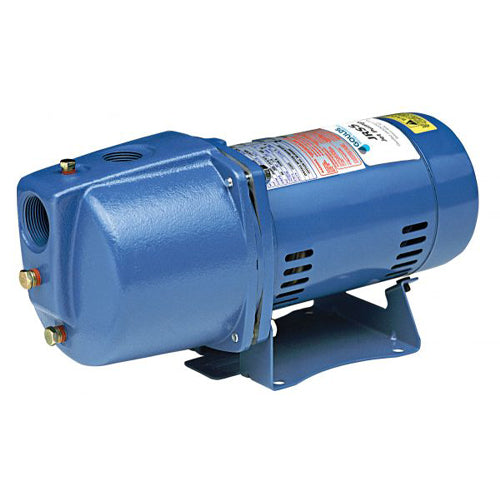

JRS7 Goulds Pumps Shallow Well Jet Pump (3/4 HP, Single Phase, 115/230 Volts)
JRS7 Goulds Pumps Shallow Well Jet Pump (3/4 HP, Single Phase, 115/230 Volts)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:JRS7
Regular price
$1,119.00 USD
Regular price
$1,865.00 USD
Sale price
$1,119.00 USD
Shipping calculated at checkout.
Quantity
View Price in Cart
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
Goulds Pumps JRS7, Goulds Shallow Well Jet Pumps Type, 3/4 HP, Single Phase, 115/230 Volts,
| Applications | |
| Homes, Cottages, Booster service | |
| Features | |
| Compact: Design has an integral shallow well jet built into the casing, which eliminates the need for a separate shallow well adapter. | |
| Basic Pump Unit: Includes pump with integral shallow well jet (nozzle and venturi), motor, pressure switch and tubing. | |
| NOW NSF LISTED!! - DRINKING WATER NSF / ANSI 61 & 372 | |
| Back pullout design allows disassembly of pump for service without disturbing piping. | |
| Two compartment motor for easy access to motor wiring and replaceable components. | |
| Nozzle clean out plug in pump case | |
| Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning. Premium O-ring design fittings need only be hand tight to seal. | |
| O-ring casing seal | |
| Drain Plug: For ease of winterizing and maintenance. | |
| Seal Housing: Engineered composite. Corrosion and abrasion resistant. | |
| Impeller: F.D.A. compliant, glass filled engineered composite. Corrosion and abrasion resistant. Tubing and Fittings: F.D.A. compliant engineered plastic is corrosion and U.V. resistant. Powered for Continuous Operation: Pump ratings are within the motor manufacturers recommended working limits. Can be operated continuously without damage. Corrosion Resistant: Electro-coat paint process is applied inside and out, then baked on. Excellent Air Handling Ability: After initial priming the pump has the ability to reprime itself even when air gets into the system. Pumping resumes once the water level rises above the foot valve. NSF Listed: The first NSF listed jet pumps in the industry. All jet pumps and shallow well components only, deep well components are not listed. | |
Specifications | |
Brand |
Goulds Pumps |
Catalog Number |
JRS7 |
Type |
Goulds Shallow Well Jet Pumps |
Series |
JRS |
HP |
3/4 |
Phase |
Single |
Volts |
115/230 |
RPM |
3500 |
Suction |
1-1/4" |
Discharge |
1" |
Max Temp (F) |
140 |
Discharge Pressure |
30-50 PSI |
Notes |
See Support Documents |
Support Documents (pdf) |
