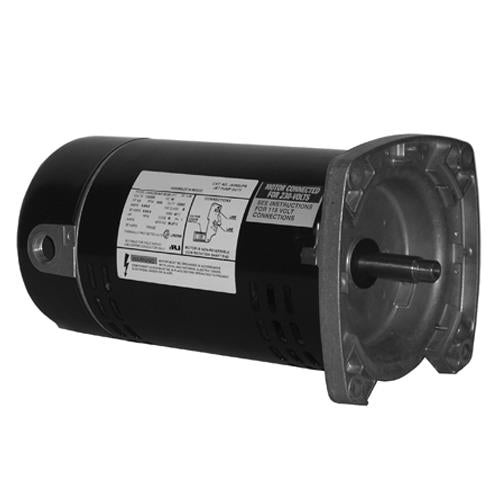

JJ0752-2V U.S. Motors Jet Pump Motor (3/4 HP, 56J Frame, C-Face, 3600 RPM)
JJ0752-2V U.S. Motors Jet Pump Motor (3/4 HP, 56J Frame, C-Face, 3600 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:JJ0752-2V
Regular price
$294.28 USD
Regular price
Sale price
$294.28 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
US Motors Emerson JJ0752-2V, HP: 3/4, RPM: 3600, Volts: 115/230, Frame: 56J, Motor Face: C-Face, Enclosure: ODP, Type: Single Phase Jet, Booster and Centrifugal Pump Motor, Motor Start: Capacitor Start ,
| Applications |
| For jet pumps, booster pumps, centrifugal pumps, lawn sprinkler pumps. |
| Features |
| 303 Stainless Steel Shaft; C-Face: 7/16-20 UNF2A thread; Square Flange: 1/2-20 UNC-2A thread; Ball Bearings (Locked Drive End Bearing); Continuous Duty; 60 Hertz; E-Z Access Motor Cover; 40C Ambient; Automatic Reset Thermal Overload Protector; Round Frame (Without Base), NEMA 56C C-Face or Square Flange Mounting; Power Leads Supplied For Proper Connection To Pressure Switch; Voltage Selector Switch (Catalog Numbers Ending With "-2V" and "UPR") |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Pump Motor |
Model Number |
JJ0752-2V |
HP |
3/4 |
RPM |
3600 |
Volts |
115/230 |
SF |
1.5 |
Frame |
56J |
Full Load Amps |
12.2/6.1 |
"C" Dim. |
13.8 |
Apx. Wt. (lb) |
21 |
Motor Face |
C-Face |
Phase |
Single |
Motor Mount |
Footless |
Enclosure |
ODP |
Type |
Single Phase Jet, Booster and Centrifugal Pump Motor |
Notes |
Two Compartment, E-Z Access Motor Cover |
Motor Start |
Capacitor Start |
