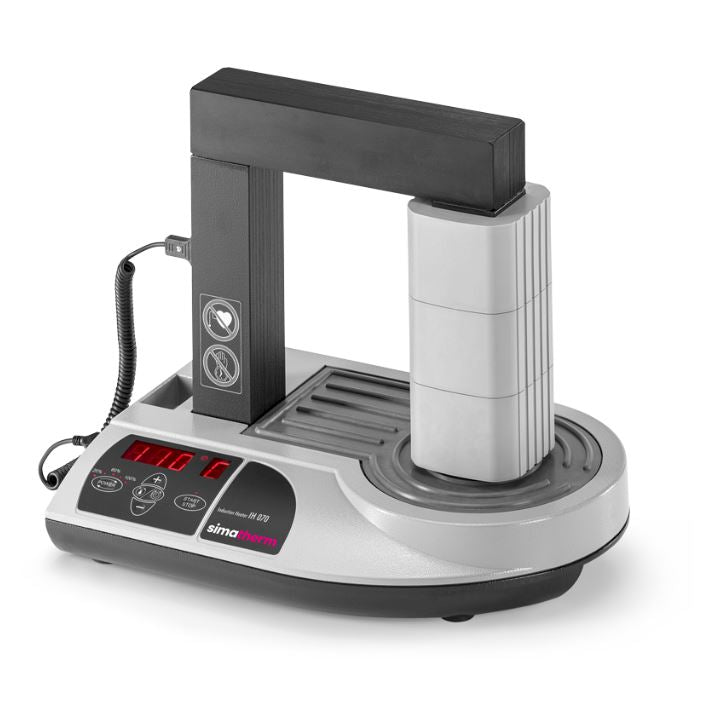

IH 070 Simatec Simatherm Induction Heater (Model # 110.13040, 120V/60 Hz)
Heat small to medium-sized rolling bearings up to 120 kg
The popular all-round heater for flexible use
The IH 070 is suitable for heating small and medium-sized workpieces up to 120 kg. Due to the external induction coil, the unit works extremely efficiently. The power can be adjusted in four stages if required.
- For rolling bearings weighing up to 120 kg
- For workpieces with an inner diameter of 20 to 400 mm
- Available for voltages of 100, 115 and 230 V
- Swivel arm available as an option
- Automatic demagnetization
- 5-stage power consumption combined with smaller yokes, allows smaller bearings to be heated safely and quickly with less energy
- Supplied with three yokes as standard
- Particularly compact design - including the yokes only 35 kg in weight
- 3 year manufacturer warranty
- Particularly compact design - including the yokes only 35 kg in weight
- Can heat a 65 kg bearing from 20 °C to 110 °C in 20 minutes, thus saving time and energy
- 1x simatherm IH 070
- 1x User manual
- 1x Temperature probe
- 1x Protective gloves
- 1x Power cord
- 1x Yoke 14x14 for bearings with a bore diameter from 20 mm
- 1x Yoke 28x28 for bearings with a bore diameter from 40 mm
- 1x Yoke 55x55 for bearings with a bore diameter from 78 mm
Optional:
- Swivel arm
- Yoke adapter
- Yokes (10 x10 mm, 20 x 20 mm, 40 x 40 mm)
