Sta-Rite Pumps

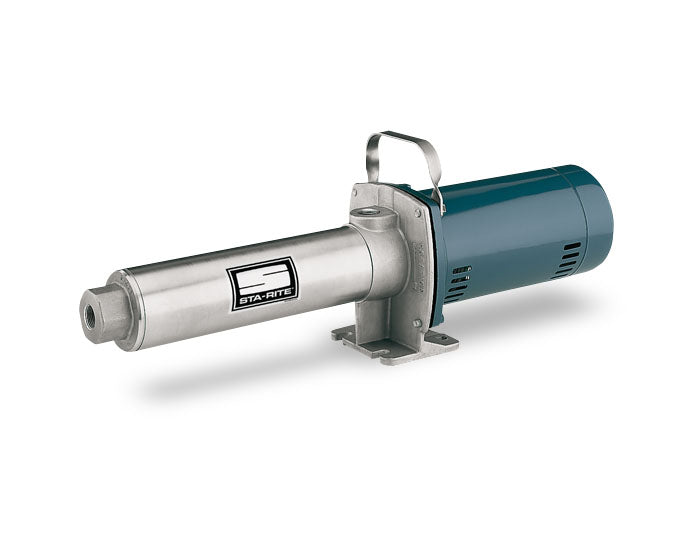

HPS20E-01 Pentair Sta-Rite HP/HPS Series Signature 2000 High-Pressure Booster Pump (Stainless Steel, 20 GPM, 1 HP, 115/230 V, 1 Phase)
HPS20E-01 Pentair Sta-Rite HP/HPS Series Signature 2000 High-Pressure Booster Pump (Stainless Steel, 20 GPM, 1 HP, 115/230 V, 1 Phase)
[COUNT] shoppers are looking at this right now
No reviews
SKU:HPS20E-01
Regular price
$1,825.55 USD
Regular price
$3,560.00 USD
Sale price
$1,825.55 USD
Shipping calculated at checkout.
Quantity
View price in cart
Couldn't load pickup availability
HPS20E, Stainless Steel , 20 GPM, 1 HP, 115/230 V, 1 Phase, ?7 Stages, 1" Inlet Size, 1" Outlet Size,
| Applications | |
| Residential, Commercial & Agricultural Booster Systems, Pressure Washing, HVAC, Car Wash, Filtration and Reverse Osmosis | |
| Features | |
| The proven SignaSeal floating impeller design minimizes thrust loads allowing for continuous operation without damage to motor bearings, mechanical seal or pump hydraulic components | |
| Superior sand-handling and thrust management staging system | |
| Precision-molded acetal impellers for perfect balance. Ultra-smooth for highest performance and efficiency | |
| All electrical components are protected from dirt, dust, and insects by a dustproof canopy which the ventilating air cannot contaminate | |
| Precision lapped and highly polished carbon-ceramic mechanical shaft seal with stainless steel parts guarantees continuous water lubrication | |
| Precision-molded diffusers offer superior performance with high resistance to corrosion and abrasion | |
|
Specifications |
|
|
Brand
|
STA-RITE
|
|
Model Number
|
HPS20E
|
|
Type
|
High Pressure Booster Pump
|
|
STA-RITE Pump Series
|
HPS Series
|
|
Pump Construction
|
Stainless Steel
|
|
GPM
|
20
|
|
HP
|
1
|
|
Voltage
|
115/230
|
|
Phase
|
1
|
|
Stages
|
7
|
|
Inlet Size
|
1"
|
|
Outlet Size
|
1"
|
|
Max. Inlet Pressure
|
80 PSI
|
|
Max. Working Pressure
|
315 PSI
|
|
Max. Suction Lift
|
15 feet
|
|
Max. Temp.
|
140 F
|
|
Motor Enclosure
|
ODP (TEFC on request)
|
|
Shaft
|
Stainless Steel 304 grade
|
|
Impeller
|
Acetal
|
|
Mechanical Seal
|
Carbon/ceramic, Buna-N
|
|
Diffuser
|
Polycarbonate
|
|
Pressure Switch
|
Not Included
|
|
Warranty
|
1 Year Limited Warranty
|
|
Weight lbs.
|
49
|
|
Notes & Pump Curve
|
See Support Documents
|
|
Pump Manual
|
See Support Documents
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Support Documents (pdf) |
||||
| Notes & Pump Curve | ||||
| Installation & Parts Manual | ||||
