Simatec

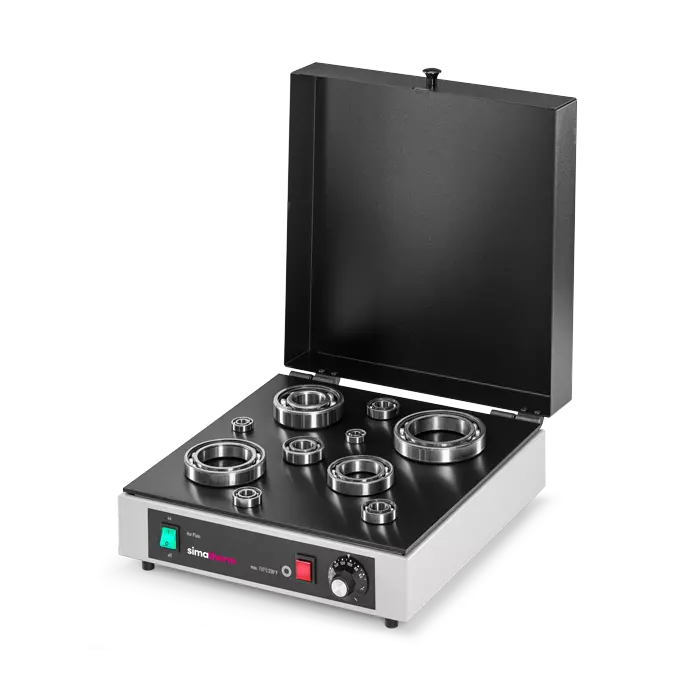

HPS 200 Simatec Electric hot plate with thermostat controlled bearing heating (Model # 110-18060, 120V/60 Hz) - 1 Unit

HPS 200 Simatec Electric hot plate with thermostat controlled bearing heating (Model # 110-18060, 120V/60 Hz) - 1 Unit

SKU:110-18060

Regular price $1,371.15 USD
Regular price $1,426.00 USD Sale price $1,371.15 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

HPS 240 Simatec Electric hot plate with thermostat controlled bearing heating (Model # 110-18060, 120V/60 Hz)

Electric heating plate with temperature control

The two electric heating plates with thermostat-controlled heating are especially suitable for small bearings and machine parts. The temperature can be continuously adjusted between 50 °C and 200 °C on the controller.

  • HPS for workpieces weighing up to 5 kg; HPL for workpieces weighing up to 10 kg
  • Designed to heat multiple workpieces simultaneously
  • Flat heating surface for gentle and uniform heating of the bearing
  • Also suitable for heating non-ferritic workpieces such as aluminum or brass
  • Available for voltages of 100–115 and 230V
  • Control range from 50 to 200 °C
  • 3 years manufacturer warranty
  • The cover prevents contamination of the workpieces during heating. In addition, the workpieces are heated quicker when the cover is closed.
  • 1x HPS or HPL
  • 1x Protective gloves
  • 1x User manual
  • 1x Power cord


    Technical data

    - Designation - Heaters for small workpieces
    - Voltage V / Hz - 220 – 240 V / 50 – 60 Hz 100 – 120 V / 50 – 60 Hz
    - Workpiece - Maximum weight - HPS 5 kg / HPL 10 kg
    - Temperature control - Range 50 – 200°C
    - Maximum temperature (approx.) - 200°C
    - Suitable for heating sealed bearings - yes
    - Suitable for heating pre-greased bearing - yes
    - Control panel - Main switch, temperature control
    - Size of the operating surface (LxW) - 380 x 180 mm / 380 x 380 mm
    - Measurements - (LxWxH) HPS 390 x 190 x 150 mm / HPL 390 x 390 x 170 mm
    - Overall weight - HPS: 6 kg (13.2 lbs) / HPL: 10 kg (22 lbs)
    - Maximum power consumption - HPS 1.0 kVA and HPL 2.0 kVA

    Application areas

    • General manufacture and maintenance in plant and mechanical engineering
    • Maintenance and repair shops
    • Maintenance of agricultural, municipal and construction machinery
    • Maintenance of gearboxes
    • Maintenance of electric motors
