Sta-Rite Pumps

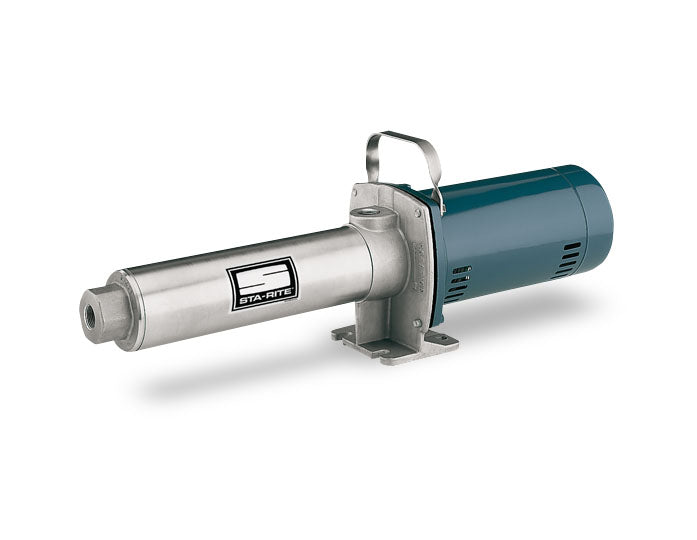

HP30F-02 STA-RITE High-Pressure Booster Pump (Cast Iron, 30 GPM, 1-1/2 HP, 115/230 V, 1 Phase)

HP30F-02 STA-RITE High-Pressure Booster Pump (Cast Iron, 30 GPM, 1-1/2 HP, 115/230 V, 1 Phase)

SKU:HP30F-02

Regular price $1,293.46 USD
Regular price $2,655.00 USD Sale price $1,293.46 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

HP30F, Cast Iron , 30 GPM, 1-1/2 HP, 115/230 V, 1 Phase, ?6 Stages, 1-1/4" Inlet Size, 1-1/4" Outlet Size,

Applications
Residential, Commercial & Agricultural Booster Systems, Pressure Washing, HVAC, Car Wash, Filtration and Reverse Osmosis
Features
The proven SignaSeal floating impeller design minimizes thrust loads allowing for continuous operation without damage to motor bearings, mechanical seal or pump hydraulic components
Superior sand-handling and thrust management staging system
Precision-molded acetal impellers for perfect balance. Ultra-smooth for highest performance and efficiency
All electrical components are protected from dirt, dust, and insects by a dustproof canopy which the ventilating air cannot contaminate
Precision lapped and highly polished carbon-ceramic mechanical shaft seal with stainless steel parts guarantees continuous water lubrication
Precision-molded diffusers offer superior performance with high resistance to corrosion and abrasion

Specifications

Brand
STA-RITE
Model Number
HP30F
Type
High Pressure Booster Pump
STA-RITE Pump Series
HP Series
Pump Construction
Cast Iron
GPM
30
HP
1-1/2
Voltage
115/230
Phase
1
Stages
?6
Inlet Size
1-1/4"
Outlet Size
1-1/4"
Max. Inlet Pressure
80 PSI
Max. Working Pressure
315 PSI
Max. Suction Lift
15 feet
Max. Temp.
140 F
Motor Enclosure
ODP (TEFC on request)
Shaft
Stainless Steel 304 grade
Impeller
Acetal
Mechanical Seal
Carbon/ceramic, Buna-N
Diffuser
Polycarbonate
Pressure Switch
Not Included
Warranty
1 Year Limited Warranty
Weight lbs.
54
Notes & Pump Curve
See Support Documents
Pump Manual
See Support Documents

Support Documents (pdf)

Notes & Pump Curve
Installation & Parts Manual
