Sta-Rite Pumps

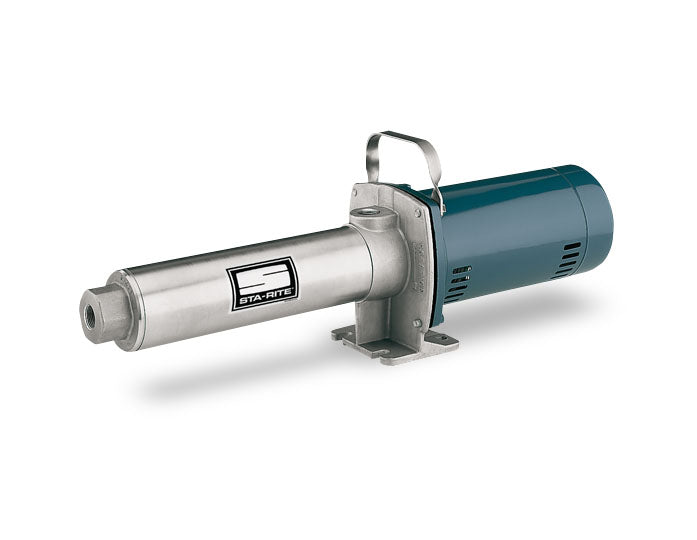

HP20E-02 STA-RITE High-Pressure Booster Pump (Cast Iron, 20 GPM, 1 HP, 115/230 V, 1 Phase)
HP20E-02 STA-RITE High-Pressure Booster Pump (Cast Iron, 20 GPM, 1 HP, 115/230 V, 1 Phase)
SKU:HP20E-02
Regular price
$1,136.59 USD
Regular price
$2,333.00 USD
Sale price
$1,136.59 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
HP20E, Cast Iron , 20 GPM, 1 HP, 115/230 V, 1 Phase, ?7 Stages, 1" Inlet Size, 1" Outlet Size,
| Applications | |
| Residential, Commercial & Agricultural Booster Systems, Pressure Washing, HVAC, Car Wash, Filtration and Reverse Osmosis | |
| Features | |
| The proven SignaSeal floating impeller design minimizes thrust loads allowing for continuous operation without damage to motor bearings, mechanical seal or pump hydraulic components | |
| Superior sand-handling and thrust management staging system | |
| Precision-molded acetal impellers for perfect balance. Ultra-smooth for highest performance and efficiency | |
| All electrical components are protected from dirt, dust, and insects by a dustproof canopy which the ventilating air cannot contaminate | |
| Precision lapped and highly polished carbon-ceramic mechanical shaft seal with stainless steel parts guarantees continuous water lubrication | |
| Precision-molded diffusers offer superior performance with high resistance to corrosion and abrasion | |
Specifications | |
Brand |
STA-RITE |
Model Number |
HP20E |
Type |
High Pressure Booster Pump |
STA-RITE Pump Series |
HP Series |
Pump Construction |
Cast Iron |
GPM |
20 |
HP |
1 |
Voltage |
115/230 |
Phase |
1 |
Stages |
?7 |
Inlet Size |
1" |
Outlet Size |
1" |
Max. Inlet Pressure |
80 PSI |
Max. Working Pressure |
315 PSI |
Max. Suction Lift |
15 feet |
Max. Temp. |
140 F |
Motor Enclosure |
ODP (TEFC on request) |
Shaft |
Stainless Steel 304 grade |
Impeller |
Acetal |
Mechanical Seal |
Carbon/ceramic, Buna-N |
Diffuser |
Polycarbonate |
Pressure Switch |
Not Included |
Warranty |
1 Year Limited Warranty |
Weight lbs. |
49 |
Notes & Pump Curve |
See Support Documents |
Pump Manual |
See Support Documents |
Support Documents (pdf) | ||||
| Notes & Pump Curve | ||||
| Installation & Parts Manual | ||||
