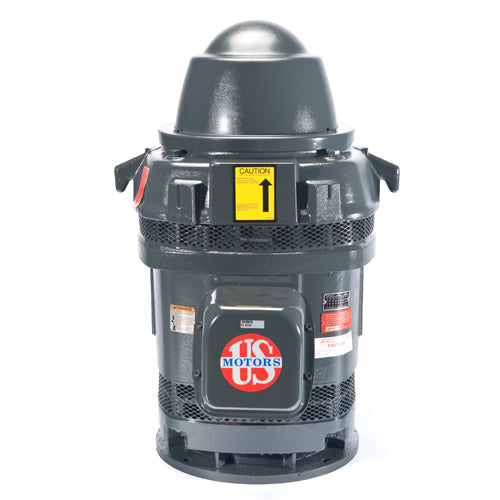

HO20V2BLF U.S. Motors Vertical Holloshaft Motor (20 HP, 230/460 Volts, 1800 RPM)

HO20V2BLF U.S. Motors Vertical Holloshaft Motor (20 HP, 230/460 Volts, 1800 RPM)

HO20V2BLF

$4,674.05 USD
$4,674.05 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson HO20V2BLF HP: 20, RPM: 1800, Volts: 230/460, Frame: 256TPH, Down Thrust (lbs.): 3300, Cplg Height (in.): 24-3/4, Cplg Key Size: 1/4, P Base, Three Phase Weather Protected Type I (WPI), Inverter Duty
Applications
For use on Turbine, Mix Flow and Propeller Pumps.
Features
Class F Insulation, Class B Rise at Full Load (Sine Wave Power) 30 HP & Below Can Be Re-rated For 208/415 Volt
1.15 Service Factor (Sine Wave Power) 50 Hertz Operation at 1.0 Service Factor
Maximum 40C Ambient, 3,300 Feet Altitude Suitable For Operation on VFD Per NEMA MG-1 Part 30 at 1.0 Service Factor
230/460 Volt Motors Suitable for 230 Volt Part Winding Start 115 Volt Space Heater Through 250 HP
Stainless Steel Nameplate Corrosion Resistant Mill & Chemical Duty Paint
NRR = Non-Reverse Ratchet, SRC = Self-Release Coupling Premium Efficient Design, Special Balance

Tech Specs

Brand
U.S. Motors
Model Number
HO20V2BLF
HP
20
RPM
1800
Volts
230/460
Frame
256TPH
Down Thrust (lbs.)
3300
Base Dia (in.)
12
Cplg Height (in.)
24-3/4
Apx. Wt. (lb)
300
Cplg BX (in.)
1
Cplg Key Size
1/4
Phase
Three
Base
"P" Base
Efficiency
Premium Efficient
5 FL Efficiency
92.4
Type
AUI
Notes
See Product Literature
