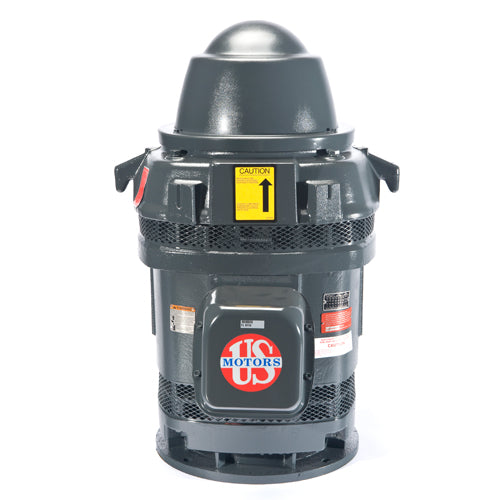

HO150S25LG U.S. Motors Vertical Holloshaft Motor (150 HP, 415 Volts, 1500 RPM)

HO150S25LG U.S. Motors Vertical Holloshaft Motor (150 HP, 415 Volts, 1500 RPM)

[COUNT] shoppers are looking at this right now

HO150S25LG

$17,612.41 USD
$0.00 USD $17,612.41 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson HO150S25LG HP: 150, RPM: 1500, Volts: 415, Frame: H444TP, Down Thrust (lbs.): 9800, Cplg Height (in.): 44.78, Cplg Key Size: 3/8, P Base, Three Phase, International Duty

Applications
For use on Turbine, Mix Flow and Propeller Pumps.
Features
Class F Insulation NEMA Design A, 60 Hz
1.15 Service Factor (Sine Wave Power) Corrosion Resistant Mill & Chemical Duty Paint
Maximum 50C Ambient, 3,300 Feet Altitude NRR = Non-Reverse Ratchet, SRC = Self-Release Coupling
12 Lead Wye-Delta

Tech Specs

Brand
U.S. Motors
Model Number
HO150S25LG
HP
150
RPM
1500
Volts
415
Frame
H444TP
Down Thrust (lbs.)
9800
Base Dia (in.)
16.5
Cplg Height (in.)
44.78
Apx. Wt. (lb)
1500
Cplg BX (in.)
-
Cplg Key Size
3/8
Phase
Three
Base
"P" Base
Hertz
50 Hz
5 FL Efficiency
94.1
Type
RU
Notes
See Product Literature

Support Documents (pdf)

Product Literature
