U.S. Motors

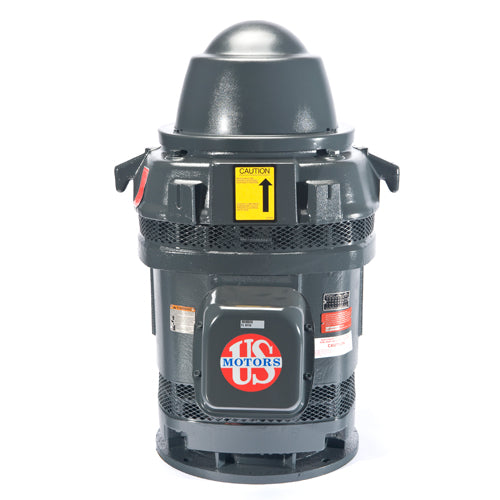

HO100V2SLG U.S. Motors Vertical Holloshaft Motor (100 HP, 460 Volts, 1800 RPM)

HO100V2SLG U.S. Motors Vertical Holloshaft Motor (100 HP, 460 Volts, 1800 RPM)

HO100V2SLG

$12,962.16 USD
$12,962.16 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson HO100V2SLG HP: 100, RPM: 1800, Volts: 460, Frame: 404TP, Down Thrust (lbs.): 6700, Cplg Height (in.): 36-15/16, Cplg Key Size: 3/8, P Base, Three Phase Weather Protected Type I (WPI), Inverter Duty
Applications
For use on Turbine, Mix Flow and Propeller Pumps.
Features
Class F Insulation, Class B Rise at Full Load (Sine Wave Power) 30 HP & Below Can Be Re-rated For 208/415 Volt
1.15 Service Factor (Sine Wave Power) 50 Hertz Operation at 1.0 Service Factor
Maximum 40C Ambient, 3,300 Feet Altitude Suitable For Operation on VFD Per NEMA MG-1 Part 30 at 1.0 Service Factor
230/460 Volt Motors Suitable for 230 Volt Part Winding Start 115 Volt Space Heater Through 250 HP
Stainless Steel Nameplate Corrosion Resistant Mill & Chemical Duty Paint
NRR = Non-Reverse Ratchet, SRC = Self-Release Coupling Premium Efficient Design, Special Balance

Tech Specs

Brand
U.S. Motors
Model Number
HO100V2SLG
HP
100
RPM
1800
Volts
460
Frame
404TP
Down Thrust (lbs.)
6700
Base Dia (in.)
16-1/2
Cplg Height (in.)
36-15/16
Apx. Wt. (lb)
1110
Cplg BX (in.)
1-1/2
Cplg Key Size
3/8
Phase
Three
Base
"P" Base
Efficiency
Premium Efficient
5 FL Efficiency
95.4
Type
RUSI
Notes
See Product Literature
