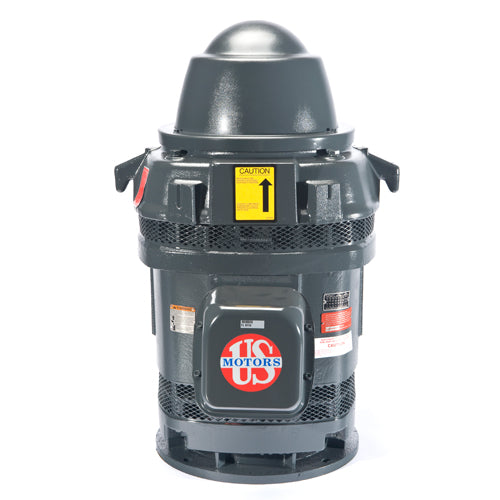

HO100S25LG U.S. Motors Vertical Holloshaft Motor (100 HP, 415 Volts, 1500 RPM)

HO100S25LG U.S. Motors Vertical Holloshaft Motor (100 HP, 415 Volts, 1500 RPM)

[COUNT] shoppers are looking at this right now

HO100S25LG

$10,586.04 USD
$0.00 USD $10,586.04 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson HO100S25LG HP: 100, RPM: 1500, Volts: 415, Frame: 404TP, Down Thrust (lbs.): 6700, Cplg Height (in.): 36.94, Cplg Key Size: 1/4, P Base, Three Phase, International Duty

Applications
For use on Turbine, Mix Flow and Propeller Pumps.
Features
Class F Insulation NEMA Design A, 60 Hz
1.15 Service Factor (Sine Wave Power) Corrosion Resistant Mill & Chemical Duty Paint
Maximum 50C Ambient, 3,300 Feet Altitude NRR = Non-Reverse Ratchet, SRC = Self-Release Coupling
12 Lead Wye-Delta

Tech Specs

Brand
U.S. Motors
Model Number
HO100S25LG
HP
100
RPM
1500
Volts
415
Frame
404TP
Down Thrust (lbs.)
6700
Base Dia (in.)
16.5
Cplg Height (in.)
36.94
Apx. Wt. (lb)
1110
Cplg BX (in.)
-
Cplg Key Size
1/4
Phase
Three
Base
"P" Base
Hertz
50 Hz
5 FL Efficiency
92.4
Type
RU
Notes
See Product Literature

Support Documents (pdf)

Product Literature
